Socket Set Machine Screws

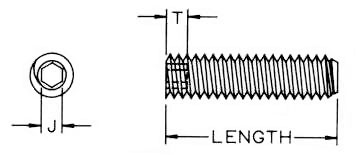

Product Number Thread Size J T Length
PMSSMS0436050 436 0.050 0.070 0.500
PMSSMS0440009 440 0.050 0.070 0.093
PMSSMS0440012 440 0.050 0.070 0.125
PMSSMS0440014 440 0.050 0.070 0.140
PMSSMS0440015 440 0.050 0.070 0.156
PMSSMS0440018 440 0.050 0.070 0.187
PMSSMS0440025 440 0.050 0.070 0.250
PMSSMS0440028 440 0.050 0.070 0.281
PMSSMS0440031 440 0.050 0.070 0.312
PMSSMS0440037 440 0.050 0.070 0.375
PMSSMS0440043 440 0.050 0.070 0.437
PMSSMS0440050 440 0.050 0.070 0.500
PMSSMS0440056 440 0.050 0.070 0.562
PMSSMS0440062 440 0.050 0.070 0.625
PMSSMS0440068 440 0.050 0.070 0.687
PMSSMS0440075 440 0.050 0.070 0.750
PMSSMS0440087 440 0.050 0.070 0.875
PMSSMS0440100 440 0.050 0.070 1.000
PMSSMS0440112 440 0.050 0.070 1.125
PMSSMS0440118 440 0.050 0.070 1.187
PMSSMS0440125 440 0.050 0.070 1.250
PMSSMS0440137 440 0.050 0.070 1.375
PMSSMS0440150 440 0.050 0.070 1.500
PMSSMS0440162 440 0.050 0.070 1.625
PMSSMS0440175 440 0.050 0.070 1.750
PMSSMS0448025 448 0.050 0.070 0.250
PMSSMS0632009 632 0.062 0.080 0.093
PMSSMS0632012 632 0.062 0.080 0.125
PMSSMS0632015 632 0.062 0.080 0.156
PMSSMS0632018 632 0.062 0.080 0.187
PMSSMS0632025 632 0.062 0.080 0.250
PMSSMS0632031 632 0.062 0.080 0.312
PMSSMS0632037 632 0.062 0.080 0.375
PMSSMS0632043 632 0.062 0.080 0.437
PMSSMS0632050 632 0.062 0.080 0.500
PMSSMS0632056 632 0.062 0.080 0.562
PMSSMS0632062 632 0.062 0.080 0.625
PMSSMS0632068 632 0.062 0.080 0.687
PMSSMS0632075 632 0.062 0.080 0.750
PMSSMS0632087 632 0.062 0.080 0.875
PMSSMS0632100 632 0.062 0.080 1.000
PMSSMS0632112 632 0.062 0.080 1.125
PMSSMS0632125 632 0.062 0.080 1.250
PMSSMS0632150 632 0.062 0.080 1.500
PMSSMS0632162 632 0.062 0.080 1.625
PMSSMS0632175 632 0.062 0.080 1.750
PMSSMS0632187 632 0.062 0.080 1.875
PMSSMS0632T200 632 0.062 0.080 2.000
PMSSMS0632T225 632 0.062 0.080 2.250
PMSSMS0640025 632 0.062 0.080 0.250
PMSSMS0640037 640 0.062 0.080 0.375
PMSSMS0640075 640 0.062 0.080 0.750
PMSSMS0640100 640 0.062 0.080 1.000
PMSSMS0832012 832 0.078 0.090 0.125
PMSSMS0832018 832 0.078 0.090 0.187
PMSSMS0832025 832 0.078 0.090 0.250
PMSSMS0832028 832 0.078 0.090 0.281
PMSSMS0832031 832 0.078 0.090 0.312
PMSSMS0832037 832 0.078 0.090 0.375
PMSSMS0832043 832 0.078 0.090 0.437
PMSSMS0832050 832 0.078 0.090 0.500
PMSSMS0832062 832 0.078 0.090 0.625
PMSSMS0832075 832 0.078 0.090 0.750
PMSSMS0832087 832 0.078 0.090 0.875
PMSSMS0832100 832 0.078 0.090 1.000
PMSSMS0832112 832 0.078 0.090 1.125
PMSSMS0832125 832 0.078 0.090 1.250
PMSSMS0832137 832 0.078 0.090 1.375
PMSSMS0832150 832 0.078 0.090 1.500
PMSSMS0832175 832 0.078 0.090 1.750
PMSSMS0832187 832 0.078 0.090 1.875
PMSSMS0832T200 832 0.078 0.090 2.000
PMSSMS1024012 1024 0.094 0.100 0.125
PMSSMS1024018 1024 0.094 0.100 0.187
PMSSMS1024025 1024 0.094 0.100 0.250
PMSSMS1024031 1024 0.094 0.100 0.312
PMSSMS1024037 1024 0.094 0.100 0.375
PMSSMS1024050 1024 0.094 0.100 0.500
PMSSMS1024062 1024 0.094 0.100 0.625
PMSSMS1024075 1024 0.094 0.100 0.750
PMSSMS1024100 1024 0.094 0.100 1.000
PMSSMS1024125 1024 0.094 0.100 1.250
PMSSMS1024150 1024 0.094 0.100 1.500
PMSSMS1032012 1032 0.094 0.100 0.125
PMSSMS1032018 1032 0.094 0.100 0.187
PMSSMS1032025 1032 0.094 0.100 0.250
PMSSMS1032031 1032 0.094 0.100 0.312
PMSSMS1032037 1032 0.094 0.100 0.375
PMSSMS1032043 1032 0.094 0.100 0.437
PMSSMS1032050 1032 0.094 0.100 0.500
PMSSMS1032062 1032 0.094 0.100 0.625
PMSSMS1032075 1032 0.094 0.100 0.750
PMSSMS1032081 1032 0.094 0.100 0.812
PMSSMS1032087 1032 0.094 0.100 0.875
PMSSMS1032100 1032 0.094 0.100 1.000
PMSSMS1032125 1032 0.094 0.100 1.250
PMSSMS1032150 1032 0.094 0.100 1.500
PMSSMS1032175 1032 0.094 0.100 1.750
PMSSMS1032T200 1032 0.094 0.100 2.000
PMSSMS2520025 1/4-20 0.125 0.125 0.250
PMSSMS2520031 1/4-20 0.125 0.125 0.312
PMSSMS2520037 1/4-20 0.125 0.125 0.375
PMSSMS2520050 1/4-20 0.125 0.125 0.500
PMSSMS2520062 1/4-20 0.125 0.125 0.625
PMSSMS2520075 1/4-20 0.125 0.125 0.750
PMSSMS2520087 1/4-20 0.125 0.125 0.875
PMSSMS2520100 1/4-20 0.125 0.125 1.000
PMSSMS2520125 1/4-20 0.125 0.125 1.250
PMSSMS2520150 1/4-20 0.125 0.125 1.500
PMSSMS2520175 1/4-20 0.125 0.125 1.750
PMSSMS2520T200 1/4-20 0.125 0.125 2.000
PMSSMS2520T250 1/4-20 0.125 0.125 2.500
PMSSMS2528018 1/4-28 0.125 0.125 0.187
PMSSMS2528025 1/4-28 0.125 0.125 0.250
PMSSMS2528037 1/4-28 0.125 0.125 0.375
PMSSMS2528062 1/4-28 0.125 0.125 0.625
PMSSMS2528075 1/4-28 0.125 0.125 0.750
PMSSMS2528100 1/4-28 0.125 0.125 1.000
PMSSMS31218037 5/16-18 0.125 0.125 0.375
PMSSMS31218050 5/16-18 0.156 0.156 0.500
PMSSMS31218075 5/16-18 0.156 0.156 0.750
PMSSMS31218100 5/16-18 0.156 0.156 1.000
PMSSMS37516050 3/8-16 0.188 0.188 0.500
PMSSMS37516075 3/8-16 0.188 0.188 0.750
PMSSMS37516100 3/8-16 0.188 0.188 1.000
PMSSMS50013050 1/2-13 0.250 0.250 0.500
PMSSMS50013075 1/2-13 0.250 0.250 0.750
PMSSMS50013100 1/2-13 0.250 0.250 1.000
PMSSMS50013125 1/2-13 0.250 0.250 1.250
PMSSMS62511050 5/8-11 0.312 0.312 0.500
PMSSMS62511075 5/8-11 0.312 0.312 0.750
PMSSMS62511100 5/8-11 0.312 0.312 1.000
PMSSMS62511150 5/8-11 0.312 0.312 1.500
PMSSMS75010025 3/4-10 0.370 0.185 0.250

Nominal Screw Size 0000 thru 00 0 thru 12 1/4 thru 3/4
Nominal Screw Length Tolerance on Length
Up to 1/2 in., incl. -0.01 -0.02 -0.03
Over 1/2 to 1 in., incl. -0.02 -0.03 -0.03
Over 1 to 2 in., incl. - -0.06 -0.06
Over 2 in. - -0.09 -0.09
