Metric Phillips Pan Machine Screw

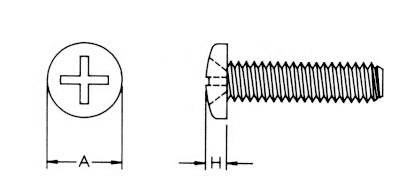

Product Number Thread Size A H Length
PMPPMSM020040004 M2 X 0.40 3.7 - 4.0 1.4 - 1.6 4
PMPPMSM020040005 M2 X 0.40 3.7 - 4.0 1.4 - 1.6 5
PMPPMSM020040006 M2 X 0.40 3.7 - 4.0 1.4 - 1.6 6
PMPPMSM020040008 M2 X 0.40 3.7 - 4.0 1.4 - 1.6 8
PMPPMSM020040010 M2 X 0.40 3.7 - 4.0 1.4 - 1.6 10
PMPPMSM020040012 M2 X 0.40 3.7 - 4.0 1.4 - 1.6 12
PMPPMSM020040016 M2 X 0.40 3.7 - 4.0 1.4 - 1.6 16
PMPPMSM020040020 M2 X 0.40 3.7 - 4.0 1.4 - 1.6 20
PMPPMSM020040025 M2 X 0.40 3.7 - 4.0 1.4 - 1.6 25
PMPPMSM025045004 M2.5 X 0.45 4.7 - 5.0 1.9 - 2.1 4
PMPPMSM025045005 M2.5 X 0.45 4.7 - 5.0 1.9 - 2.1 5
PMPPMSM025045006 M2.5 X 0.45 4.7 - 5.0 1.9 - 2.1 6
PMPPMSM025045008 M2.5 X 0.45 4.7 - 5.0 1.9 - 2.1 8
PMPPMSM025045010 M2.5 X 0.45 4.7 - 5.0 1.9 - 2.1 10
PMPPMSM025045012 M2.5 X 0.45 4.7 - 5.0 1.9 - 2.1 12
PMPPMSM025045016 M2.5 X 0.45 4.7 - 5.0 1.9 - 2.1 16
PMPPMSM025045020 M2.5 X 0.45 4.7 - 5.0 1.9 - 2.1 20
PMPPMSM025045025 M2.5 X 0.45 4.7 - 5.0 1.9 - 2.1 25
PMPPMSM030050003 M3 X 0.50 5.3 - 5.6 2.2 - 2.4 3
PMPPMSM030050004 M3 X 0.50 5.3 - 5.6 2.2 - 2.4 4
PMPPMSM030050005 M3 X 0.50 5.3 - 5.6 2.2 - 2.4 5
PMPPMSM030050006 M3 X 0.50 5.3 - 5.6 2.2 - 2.4 6
PMPPMSM030050008 M3 X 0.50 5.3 - 5.6 2.2 - 2.4 8
PMPPMSM030050010 M3 X 0.50 5.3 - 5.6 2.2 - 2.4 10
PMPPMSM030050012 M3 X 0.50 5.3 - 5.6 2.2 - 2.4 12
PMPPMSM030050016 M3 X 0.50 5.3 - 5.6 2.2 - 2.4 16
PMPPMSM030050020 M3 X 0.50 5.3 - 5.6 2.2 - 2.4 20
PMPPMSM030050025 M3 X 0.50 5.3 - 5.6 2.2 - 2.4 25
PMPPMSM030050030 M3 X 0.50 5.3 - 5.6 2.2 - 2.4 30
PMPPMSM030050035 M3 X 0.50 5.3 - 5.6 2.2 - 2.4 35
PMPPMSM030050042 M3 X 0.50 5.3 - 5.6 2.2 - 2.4 42
PMPPMSM035060005 M3.5 X 0.60 6.6 - 7.0 2.3 - 2.6 5
PMPPMSM035060006 M3.5 X 0.60 6.6 - 7.0 2.3 - 2.6 6
PMPPMSM035060007 M3.5 X 0.60 6.6 - 7.0 2.3 - 2.6 7
PMPPMSM035060008 M3.5 X 0.60 6.6 - 7.0 2.3 - 2.6 8
PMPPMSM035060010 M3.5 X 0.60 6.6 - 7.0 2.3 - 2.6 10
PMPPMSM035060012 M3.5 X 0.60 6.6 - 7.0 2.3 - 2.6 12
PMPPMSM035060016 M3.5 X 0.60 6.6 - 7.0 2.3 - 2.6 16
PMPPMSM035060020 M3.5 X 0.60 6.6 - 7.0 2.3 - 2.6 20
PMPPMSM035060025 M3.5 X 0.60 6.6 - 7.0 2.3 - 2.6 25
PMPPMSM035060035 M3.5 X 0.60 6.6 - 7.0 2.3 - 2.6 35
PMPPMSM035060042 M3.5 X 0.60 6.6 - 7.0 2.3 - 2.6 42
PMPPMSM040070003 M4 X 0.70 7.6 - 8.0 2.8 - 3.1 3
PMPPMSM040070006 M4 X 0.70 7.6 - 8.0 2.8 - 3.1 6
PMPPMSM040070008 M4 X 0.70 7.6 - 8.0 2.8 - 3.1 8
PMPPMSM040070010 M4 X 0.70 7.6 - 8.0 2.8 - 3.1 10
PMPPMSM040070012 M4 X 0.70 7.6 - 8.0 2.8 - 3.1 12
PMPPMSM040070016 M4 X 0.70 7.6 - 8.0 2.8 - 3.1 16
PMPPMSM040070020 M4 X 0.70 7.6 - 8.0 2.8 - 3.1 20
PMPPMSM040070025 M4 X 0.70 7.6 - 8.0 2.8 - 3.1 25
PMPPMSM040070030 M4 X 0.70 7.6 - 8.0 2.8 - 3.1 30
PMPPMSM040070035 M4 X 0.70 7.6 - 8.0 2.8 - 3.1 35
PMPPMSM040070040 M4 X 0.70 7.6 - 8.0 2.8 - 3.1 40
PMPPMSM050080006 M5 X 0.80 9.1 - 9.5 3.4 - 3.7 6
PMPPMSM050080008 M5 X 0.80 9.1 - 9.5 3.4 - 3.7 8
PMPPMSM050080010 M5 X 0.80 9.1 - 9.5 3.4 - 3.7 10
PMPPMSM050080012 M5 X 0.80 9.1 - 9.5 3.4 - 3.7 12
PMPPMSM050080015 M5 X 0.80 9.1 - 9.5 3.4 - 3.7 15
PMPPMSM050080016 M5 X 0.80 9.1 - 9.5 3.4 - 3.7 16
PMPPMSM050080020 M5 X 0.80 9.1 - 9.5 3.4 - 3.7 20
PMPPMSM050080025 M5 X 0.80 9.1 - 9.5 3.4 - 3.7 25
PMPPMSM050080030 M5 X 0.80 9.1 - 9.5 3.4 - 3.7 30
PMPPMSM050080035 M5 X 0.80 9.1 - 9.5 3.4 - 3.7 35
PMPPMSM050080040 M5 X 0.80 9.1 - 9.5 3.4 - 3.7 40
PMPPMSM060100005 M6 X 1.00 11.5 - 12.0 4.3 - 4.6 5
PMPPMSM060100008 M6 X 1.00 11.5 - 12.0 4.3 - 4.6 8
PMPPMSM060100010 M6 X 1.00 11.5 - 12.0 4.3 - 4.6 10
PMPPMSM060100012 M6 X 1.00 11.5 - 12.0 4.3 - 4.6 12
PMPPMSM060100016 M6 X 1.00 11.5 - 12.0 4.3 - 4.6 16
PMPPMSM060100020 M6 X 1.00 11.5 - 12.0 4.3 - 4.6 20
PMPPMSM060100022 M6 X 1.00 11.5 - 12.0 4.3 - 4.6 22
PMPPMSM060100025 M6 X 1.00 11.5 - 12.0 4.3 - 4.6 25
PMPPMSM060100030 M6 X 1.00 11.5 - 12.0 4.3 - 4.6 30
PMPPMSM060100035 M6 X 1.00 11.5 - 12.0 4.3 - 4.6 35
PMPPMSM060100040 M6 X 1.00 11.5 - 12.0 4.3 - 4.6 40
PMPPMSM060100045 M6 X 1.00 11.5 - 12.0 4.3 - 4.6 45
PMPPMSM060100050 M6 X 1.00 11.5 - 12.0 4.3 - 4.6 50
PMPPMSM060100060 M6 X 1.00 11.5 - 12.0 4.3 - 4.6 60
PMPPMSM060100070 M6 X 1.00 11.5 - 12.0 4.3 - 4.6 70
PMPPMSM060100075 M6 X 1.00 11.5 - 12.0 4.3 - 4.6 75
PMPPMSM080125010 M8 X 1.25 15.5 - 16.0 56. - 6.0 10
PMPPMSM080125016 M8 X 1.25 15.5 - 16.0 56. - 6.0 16
PMPPMSM080125020 M8 X 1.25 15.5 - 16.0 56. - 6.0 20
PMPPMSM080125025 M8 X 1.25 15.5 - 16.0 56. - 6.0 25
PMPPMSM080125030 M8 X 1.25 15.5 - 16.0 56. - 6.0 30
PMPPMSM080125035 M8 X 1.25 15.5 - 16.0 56. - 6.0 35
PMPPMSM080125050 M8 X 1.25 15.5 - 16.0 56. - 6.0 50
PMPPMSM080125070 M8 X 1.25 15.5 - 16.0 56. - 6.0 70
PMPPMSM100150013 M10 X 1.50 19.4 - 20.0 7.1 - 7.5 13
PMPPMSM100150016 M10 X 1.50 19.4 - 20.0 7.1 - 7.5 16
PMPPMSM100150019 M10 X 1.50 19.4 - 20.0 7.1 - 7.5 19
PMPPMSM100150020 M10 X 1.50 19.4 - 20.0 7.1 - 7.5 20
PMPPMSM100150025 M10 X 1.50 19.4 - 20.0 7.1 - 7.5 25
PMPPMSM100150030 M10 X 1.50 19.4 - 20.0 7.1 - 7.5 30
PMPPMSM100150035 M10 X 1.50 19.4 - 20.0 7.1 - 7.5 35
PMPPMSM100150050 M10 X 1.50 19.4 - 20.0 7.1 - 7.5 50
PMPPMSM100150060 M10 X 1.50 19.4 - 20.0 7.1 - 7.5 60

Nom. Screw Length Tolerance on Length
mm
to 3 mm incl. 0.2
over 3 to 10 mm 0.3
over 10 to 16 mm 0.4
over 16 to 50 mm 0.5
over 50 mm 1.0
All tolerances are plus and minus.
