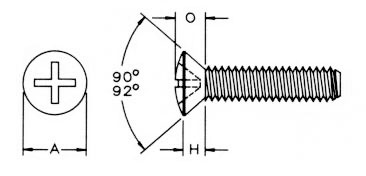

Metric Philips Oval Machine Screw


All Dimensions are in Millimeters

Product Number Thread Size A H O Length
PMPOMSM025045004 M2.5 X 0.45 4.4 - 5.5 1.5 Max.* (ref.) 2.1 Max. 4
PMPOMSM025045005 M2.5 X 0.45 4.4 - 5.5 1.5 Max.* (ref.) 2.1 Max. 5
PMPOMSM025045006 M2.5 X 0.45 4.4 - 5.5 1.5 Max.* (ref.) 2.1 Max. 6
PMPOMSM025045008 M2.5 X 0.45 4.4 - 5.5 1.5 Max.* (ref.) 2.1 Max. 8
PMPOMSM025045010 M2.5 X 0.45 4.4 - 5.5 1.5 Max.* (ref.) 2.1 Max. 10
PMPOMSM025045012 M2.5 X 0.45 4.4 - 5.5 1.5 Max.* (ref.) 2.1 Max. 12
PMPOMSM025045016 M2.5 X 0.45 4.4 - 5.5 1.5 Max.* (ref.) 2.1 Max. 16
PMPOMSM025045020 M2.5 X 0.45 4.4 - 5.5 1.5 Max.* (ref.) 2.1 Max. 20
PMPOMSM025045025 M2.5 X 0.45 4.4 - 5.5 1.5 Max.* (ref.) 2.1 Max. 25
PMPOMSM030050005 M3 X 0.50 5.2 - 6.3 1.7 Max.* (ref.) 2.4 Max. 5
PMPOMSM030050006 M3 X 0.50 5.2 - 6.3 1.7 Max.* (ref.) 2.4 Max. 6
PMPOMSM030050008 M3 X 0.50 5.2 - 6.3 1.7 Max.* (ref.) 2.4 Max. 8
PMPOMSM030050010 M3 X 0.50 5.2 - 6.3 1.7 Max.* (ref.) 2.4 Max. 10
PMPOMSM030050012 M3 X 0.50 5.2 - 6.3 1.7 Max.* (ref.) 2.4 Max. 12
PMPOMSM030050016 M3 X 0.50 5.2 - 6.3 1.7 Max.* (ref.) 2.4 Max. 16
PMPOMSM030050020 M3 X 0.50 5.2 - 6.3 1.7 Max.* (ref.) 2.4 Max. 20
PMPOMSM030050025 M3 X 0.50 5.2 - 6.3 1.7 Max.* (ref.) 2.4 Max. 25
PMPOMSM035060005 M3.5 X 0.60 6.9 - 8.2 2.3 Max.* (ref.) 3.1 Max. 5
PMPOMSM035060006 M3.5 X 0.60 6.9 - 8.2 2.3 Max.* (ref.) 3.1 Max. 6
PMPOMSM035060008 M3.5 X 0.60 6.9 - 8.2 2.3 Max.* (ref.) 3.1 Max. 8
PMPOMSM035060010 M3.5 X 0.60 6.9 - 8.2 2.3 Max.* (ref.) 3.1 Max. 10
PMPOMSM035060016 M3.5 X 0.60 6.9 - 8.2 2.3 Max.* (ref.) 3.1 Max. 16
PMPOMSM035060020 M3.5 X 0.60 6.9 - 8.2 2.3 Max.* (ref.) 3.1 Max. 20
PMPOMSM035060025 M3.5 X 0.60 6.9 - 8.2 2.3 Max.* (ref.) 3.1 Max. 25
PMPOMSM035060035 M3.5 X 0.60 6.9 - 8.2 2.3 Max.* (ref.) 3.1 Max. 35
PMPOMSM040070006 M4 X 0.70 8.0 - 9.4 2.7 Max.* (ref.) 3.7 Max. 6
PMPOMSM040070008 M4 X 0.70 8.0 - 9.4 2.7 Max.* (ref.) 3.7 Max. 8
PMPOMSM040070010 M4 X 0.70 8.0 - 9.4 2.7 Max.* (ref.) 3.7 Max. 10
PMPOMSM040070012 M4 X 0.70 8.0 - 9.4 2.7 Max.* (ref.) 3.7 Max. 12
PMPOMSM040070016 M4 X 0.70 8.0 - 9.4 2.7 Max.* (ref.) 3.7 Max. 16
PMPOMSM040070020 M4 X 0.70 8.0 - 9.4 2.7 Max.* (ref.) 3.7 Max. 20
PMPOMSM040070025 M4 X 0.70 8.0 - 9.4 2.7 Max.* (ref.) 3.7 Max. 25
PMPOMSM050080006 M5 X 0.80 8.9 - 10.4 2.7 Max.* (ref.) 3.9 Max. 6
PMPOMSM050080008 M5 X 0.80 8.9 - 10.4 2.7 Max.* (ref.) 3.9 Max. 8
PMPOMSM050080010 M5 X 0.80 8.9 - 10.4 2.7 Max.* (ref.) 3.9 Max. 10
PMPOMSM050080012 M5 X 0.80 8.9 - 10.4 2.7 Max.* (ref.) 3.9 Max. 12
PMPOMSM050080016 M5 X 0.80 8.9 - 10.4 2.7 Max.* (ref.) 3.9 Max. 16
PMPOMSM050080020 M5 X 0.80 8.9 - 10.4 2.7 Max.* (ref.) 3.9 Max. 20
PMPOMSM050080025 M5 X 0.80 8.9 - 10.4 2.7 Max.* (ref.) 3.9 Max. 25
PMPOMSM050080030 M5 X 0.80 8.9 - 10.4 2.7 Max.* (ref.) 3.9 Max. 30
PMPOMSM050080040 M5 X 0.80 8.9 - 10.4 2.7 Max.* (ref.) 3.9 Max. 40
PMPOMSM060100008 M6 X 1.00 10.9 - 12.6 3.3 Max.* (ref.) 4.7 Max. 8
PMPOMSM060100010 M6 X 1.00 10.9 - 12.6 3.3 Max.* (ref.) 4.7 Max. 10
PMPOMSM060100012 M6 X 1.00 10.9 - 12.6 3.3 Max.* (ref.) 4.7 Max. 12
PMPOMSM060100016 M6 X 1.00 10.9 - 12.6 3.3 Max.* (ref.) 4.7 Max. 16
PMPOMSM060100020 M6 X 1.00 10.9 - 12.6 3.3 Max.* (ref.) 4.7 Max. 20
PMPOMSM060100025 M6 X 1.00 10.9 - 12.6 3.3 Max.* (ref.) 4.7 Max. 25
PMPOMSM060100035 M6 X 1.00 10.9 - 12.6 3.3 Max.* (ref.) 4.7 Max. 35
PMPOMSM060100045 M6 X 1.00 10.9 - 12.6 3.3 Max.* (ref.) 4.7 Max. 45
PMPOMSM080125010 M8 X 1.25 15.4 - 17.3 4.6 Max.* (ref.) 6.6 Max. 10
PMPOMSM080125016 M8 X 1.25 15.4 - 17.3 4.6 Max.* (ref.) 6.6 Max. 16
PMPOMSM080125020 M8 X 1.25 15.4 - 17.3 4.6 Max.* (ref.) 6.6 Max. 20
PMPOMSM080125025 M8 X 1.25 15.4 - 17.3 4.6 Max.* (ref.) 6.6 Max. 25
PMPOMSM080125030 M8 X 1.25 15.4 - 17.3 4.6 Max.* (ref.) 6.6 Max. 30
PMPOMSM080125050 M8 X 1.25 15.4 - 17.3 4.6 Max.* (ref.) 6.6 Max. 50
PMPOMSM100150020 M10 X 1.50 17.8 - 20.0 5.0 Max.* (ref.) 7.3 Max. 20
PMPOMSM100150025 M10 X 1.50 17.8 - 20.0 5.0 Max.* (ref.) 7.3 Max. 25
PMPOMSM100150035 M10 X 1.50 17.8 - 20.0 5.0 Max.* (ref.) 7.3 Max. 35

Nominal Screw Length Tolerance on Length
mm
to 3mm incl. 0.2
over 3 to 10mm 0.3
over 10 to 16mm 0.4
over 16 to 50mm 0.5
over 50mm 1.0
All tolerances are plus and minus
