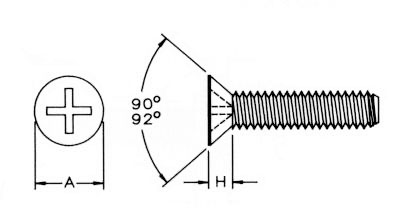

Metric Philips Flat Machine Screw


* "H" Dimension is a Reference Dimension Only
All Dimensions are in Millimeters

Product Number Thread Size A H Length
PMPFMSM025045004 M2.5 X 0.45 4.4 - 5.5 1.5 Max.* (ref.) 4
PMPFMSM025045005 M2.5 X 0.45 4.4 - 5.5 1.5 Max.* (ref.) 5
PMPFMSM025045006 M2.5 X 0.45 4.4 - 5.5 1.5 Max.* (ref.) 6
PMPFMSM025045008 M2.5 X 0.45 4.4 - 5.5 1.5 Max.* (ref.) 8
PMPFMSM025045010 M2.5 X 0.45 4.4 - 5.5 1.5 Max.* (ref.) 10
PMPFMSM025045012 M2.5 X 0.45 4.4 - 5.5 1.5 Max.* (ref.) 12
PMPFMSM025045016 M2.5 X 0.45 4.4 - 5.5 1.5 Max.* (ref.) 16
PMPFMSM025045020 M2.5 X 0.45 4.4 - 5.5 1.5 Max.* (ref.) 20
PMPFMSM025045025 M2.5 X 0.45 4.4 - 5.5 1.5 Max.* (ref.) 25
PMPFMSM030050005 M3 X 0.50 5.2 - 6.3 1.7 Max.* (ref.) 5
PMPFMSM030050006 M3 X 0.50 5.2 - 6.3 1.7 Max.* (ref.) 6
PMPFMSM030050008 M3 X 0.50 5.2 - 6.3 1.7 Max.* (ref.) 8
PMPFMSM030050010 M3 X 0.50 5.2 - 6.3 1.7 Max.* (ref.) 10
PMPFMSM030050012 M3 X 0.50 5.2 - 6.3 1.7 Max.* (ref.) 12
PMPFMSM030050016 M3 X 0.50 5.2 - 6.3 1.7 Max.* (ref.) 16
PMPFMSM030050020 M3 X 0.50 5.2 - 6.3 1.7 Max.* (ref.) 20
PMPFMSM030050025 M3 X 0.50 5.2 - 6.3 1.7 Max.* (ref.) 25
PMPFMSM035060005 M3.5 X 0.60 6.9 - 8.2 2.3 Max.* (ref.) 5
PMPFMSM035060006 M3.5 X 0.60 6.9 - 8.2 2.3 Max.* (ref.) 6
PMPFMSM035060008 M3.5 X 0.60 6.9 - 8.2 2.3 Max.* (ref.) 8
PMPFMSM035060010 M3.5 X 0.60 6.9 - 8.2 2.3 Max.* (ref.) 10
PMPFMSM035060012 M3.5 X 0.60 6.9 - 8.2 2.3 Max.* (ref.) 12
PMPFMSM035060016 M3.5 X 0.60 6.9 - 8.2 2.3 Max.* (ref.) 16
PMPFMSM035060020 M3.5 X 0.60 6.9 - 8.2 2.3 Max.* (ref.) 20
PMPFMSM035060025 M3.5 X 0.60 6.9 - 8.2 2.3 Max.* (ref.) 25
PMPFMSM035060035 M3.5 X 0.60 6.9 - 8.2 2.3 Max.* (ref.) 35
PMPFMSM040070006 M4 X 0.70 8.0 - 9.4 2.7 Max.* (ref.) 6
PMPFMSM040070008 M4 X 0.70 8.0 - 9.4 2.7 Max.* (ref.) 8
PMPFMSM040070010 M4 X 0.70 8.0 - 9.4 2.7 Max.* (ref.) 10
PMPFMSM040070012 M4 X 0.70 8.0 - 9.4 2.7 Max.* (ref.) 12
PMPFMSM040070016 M4 X 0.70 8.0 - 9.4 2.7 Max.* (ref.) 16
PMPFMSM040070020 M4 X 0.70 8.0 - 9.4 2.7 Max.* (ref.) 20
PMPFMSM040070025 M4 X 0.70 8.0 - 9.4 2.7 Max.* (ref.) 25
PMPFMSM050080006 M5 X 0.80 8.9 - 10.4 2.7 Max.* (ref.) 6
PMPFMSM050080008 M5 X 0.80 8.9 - 10.4 2.7 Max.* (ref.) 8
PMPFMSM050080010 M5 X 0.80 8.9 - 10.4 2.7 Max.* (ref.) 10
PMPFMSM050080012 M5 X 0.80 8.9 - 10.4 2.7 Max.* (ref.) 12
PMPFMSM050080016 M5 X 0.80 8.9 - 10.4 2.7 Max.* (ref.) 16
PMPFMSM050080020 M5 X 0.80 8.9 - 10.4 2.7 Max.* (ref.) 20
PMPFMSM050080025 M5 X 0.80 8.9 - 10.4 2.7 Max.* (ref.) 25
PMPFMSM050080030 M5 X 0.80 8.9 - 10.4 2.7 Max.* (ref.) 30
PMPFMSM050080040 M5 X 0.80 8.9 - 10.4 2.7 Max.* (ref.) 40
PMPFMSM060100008 M6 X 1.00 10.9 - 12.6 3.3 Max.* (ref.) 8
PMPFMSM060100010 M6 X 1.00 10.9 - 12.6 3.3 Max.* (ref.) 10
PMPFMSM060100012 M6 X 1.00 10.9 - 12.6 3.3 Max.* (ref.) 12
PMPFMSM060100016 M6 X 1.00 10.9 - 12.6 3.3 Max.* (ref.) 16
PMPFMSM060100020 M6 X 1.00 10.9 - 12.6 3.3 Max.* (ref.) 20
PMPFMSM060100025 M6 X 1.00 10.9 - 12.6 3.3 Max.* (ref.) 25
PMPFMSM060100035 M6 X 1.00 10.9 - 12.6 3.3 Max.* (ref.) 35
PMPFMSM060100045 M6 X 1.00 10.9 - 12.6 3.3 Max.* (ref.) 45
PMPFMSM080125010 M8 X 1.25 15.4 - 17.3 4.6 Max.* (ref.) 10
PMPFMSM080125016 M8 X 1.25 15.4 - 17.3 4.6 Max.* (ref.) 16
PMPFMSM080125020 M8 X 1.25 15.4 - 17.3 4.6 Max.* (ref.) 20
PMPFMSM080125025 M8 X 1.25 15.4 - 17.3 4.6 Max.* (ref.) 25
PMPFMSM080125030 M8 X 1.25 15.4 - 17.3 4.6 Max.* (ref.) 30
PMPFMSM080125050 M8 X 1.25 15.4 - 17.3 4.6 Max.* (ref.) 50
PMPFMSM100150020 M10 X 1.50 17.8 - 20.0 5.0 Max.* (ref.) 20
PMPFMSM100150025 M10 X 1.50 17.8 - 20.0 5.0 Max.* (ref.) 25
PMPFMSM100150035 M10 X 1.50 17.8 - 20.0 5.0 Max.* (ref.) 35

Nominal Screw Length Tolerance on Length
mm
to 3mm incl. 0.2
over 3 to 10mm 0.3
over 10 to 16mm 0.4
over 16 to 50mm 0.5
over 50mm 1.0
All tolerances are plus and minus
