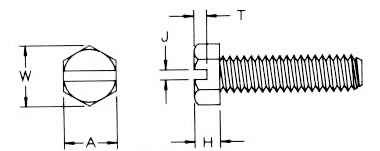

Slotted Hex in Polycarbonite


Product Number Thread Size A W H J T Length
PMSHPC0440025 440 0.181 - 0.188 .202 Min. .049 - .060 0.031 - 0.039 0.025 - 0.036 0.250
PMSHPC0440028 440 0.181 - 0.188 .202 Min. 0.049 - 0.060 0.031 - 0.039 0.025 - 0.036 0.281
PMSHPC0440037 440 0.181 - 0.188 .202 Min. 0.049 - 0.060 0.031 - 0.039 0.025 - 0.036 0.375
PMSHPC0440050 440 0.181 - 0.188 .202 Min. 0.049 - 0.060 0.031 - 0.039 0.025 - 0.036 0.500
PMSHPC0632025 632 0.244 - 0.250 .272 Min. 0.080 - 0.093 0.039 - 0.048 0.033 - 0.046 0.250
PMSHPC0632037 632 0.244 - 0.250 .272 Min. 0.080 - 0.093 0.039 - 0.048 0.033 - 0.046 0.375
PMSHPC0632050 632 0.244 - 0.250 .272 Min. 0.080 - 0.093 0.039 - 0.048 0.033 - 0.046 0.500
PMSHPC0632062 632 0.244 - 0.250 .272 Min. 0.080 - 0.093 0.039 - 0.048 0.033 - 0.046 0.625
PMSHPC0632075 632 0.244 - 0.250 .272 Min. 0.080 - 0.093 0.039 - 0.048 0.033 - 0.046 0.750
PMSHPC0832012 832 0.244 - 0.250 .272 Min. 0.093 - 0.110 0.045 - 0.054 0.052 - 0.066 0.125
PMSHPC0832025 832 0.244 - 0.250 .272 Min. 0.096 - 0.110 0.045 - 0.054 0.052 - 0.066 0.250
PMSHPC0832037 832 0.244 - 0.250 .272 Min. 0.096 - 0.110 0.045 - 0.054 0.052 - 0.066 0.375
PMSHPC0832050 832 0.244 - 0.250 .272 Min. 0.096 - 0.110 0.045 - 0.054 0.052 - 0.066 0.500
PMSHPC0832062 832 0.244 - 0.250 .272 Min. 0.096 - 0.110 0.045 - 0.054 0.052 - 0.066 0.625
PMSHPC0832075 832 0.244 - 0.250 .272 Min. 0.096 - 0.110 0.045 - 0.054 0.052 - 0.066 0.750
PMSHPC1032025 1032 0.305 - 0.312 .340 Min. 0.105 - 0.120 0.050 - 0.060 0.057 - 0.072 0.250
PMSHPC1032037 1032 0.305 - 0.312 .340 Min. 0.105 - 0.120 0.050 - 0.060 0.057 - 0.072 0.375
PMSHPC1032050 1032 0.305 - 0.312 .340 Min. 0.105 - 0.120 0.050 - 0.060 0.057 - 0.072 0.500
PMSHPC1032062 1032 0.305 - 0.312 .340 Min. 0.105 - 0.120 0.050 - 0.060 0.057 - 0.072 0.625
PMSHPC1032075 1032 0.305 - 0.312 .340 Min. 0.105 - 0.120 0.050 - 0.060 0.057 - 0.072 0.750
PMSHPC1032100 1032 0.305 - 0.312 .340 Min. 0.105 - 0.120 0.050 - 0.060 0.057 - 0.072 1.000

Nominal Screw Size 0000 thru 00 0 thru 12 1/4 thru 3/4
Nominal Screw Length Tolerance on Length
Up to 1/2 in., incl. -0.01 -0.02 -0.03
Over 1/2 to 1 in., incl. -0.02 -0.03 -0.03
Over 1 to 2 in., incl. - -0.06 -0.06
Over 2 in. - -0.09 -0.09
