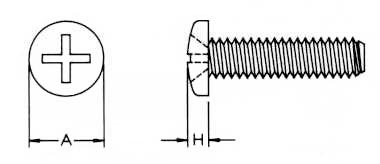

Phillips Pan in Polycarbonite


Product Number Thread Size A H Length
PMPPPC0440025 440 0.205 - 0.219 0.070 - 0.080 0.250
PMPPPC0440028 440 0.205 - 0.219 0.070 - 0.080 0.281
PMPPPC0440037 440 0.205 - 0.219 0.070 - 0.080 0.375
PMPPPC0440050 440 0.205 - 0.219 0.070 - 0.080 0.500
PMPPPC0632025 632 0.256 - 0.270 0.087 - 0.097 0.250
PMPPPC0632037 632 0.256 - 0.270 0.087 - 0.097 0.375
PMPPPC0632050 632 0.256 - 0.270 0.087 - 0.097 0.500
PMPPPC0632062 632 0.256 - 0.270 0.087 - 0.097 0.625
PMPPPC0632075 632 0.256 - 0.270 0.087 - 0.097 0.750
PMPPPC0832012 832 0.306 - 0.322 0.105 - 0.115 0.125
PMPPPC0832025 832 0.306 - 0.322 0.105 - 0.115 0.250
PMPPPC0832037 832 0.306 - 0.322 0.105 - 0.115 0.375
PMPPPC0832050 832 0.306 - 0.322 0.105 - 0.115 0.500
PMPPPC0832062 832 0.306 - 0.322 0.105 - 0.115 0.625
PMPPPC0832075 832 0.306 - 0.322 0.105 - 0.115 0.750
PMPPPC1032025 1032 0.357 - 0.373 0.122 - 0.133 0.250
PMPPPC1032037 1032 0.357 - 0.373 0.122 - 0.133 0.375
PMPPPC1032050 1032 0.357 - 0.373 0.122 - 0.133 0.500
PMPPPC1032062 1032 0.357 - 0.373 0.122 - 0.133 0.625
PMPPPC1032075 1032 0.357 - 0.373 0.122 - 0.133 0.750
PMPPPC1032100 1032 0.357 - 0.373 0.122 - 0.133 1.000

Nominal Screw Size 0000 thru 00 0 thru 12 1/4 thru 3/4
Nominal Screw Length Tolerance on Length
Up to 1/2 in., incl. -0.01 -0.02 -0.03
Over 1/2 to 1 in., incl. -0.02 -0.03 -0.03
Over 1 to 2 in., incl. - -0.06 -0.06
Over 2 in. - -0.09 -0.09
