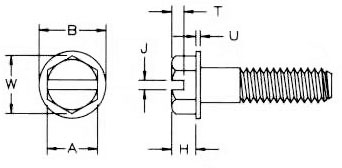

Slotted Washer Hex Bolt


Product Number Thread Size A B H U J T W Length
PMSWHB37516050 3/8-16 0.558 0.745 0.282 0.050 0.070 0.149 0.620 - 0.650 0.500
PMSWHB37516075 3/8-16 0.558 0.745 0.282 0.050 0.070 0.149 0.620 - 0.650 0.750
PMSWHB37516100 3/8-16 0.558 0.745 0.282 0.050 0.070 0.149 0.620 - 0.650 1.000
PMSWHB37516125 3/8 0.558 0.745 0.282 0.050 0.070 0.149 0.620 - 0.650 1.250
PMSWHB37516150 3/8-16 0.558 0.745 0.282 0.050 0.070 0.149 0.620 - 0.650 1.500
PMSWHB37516200 3/8-16 0.558 0.745 0.282 0.050 0.070 0.149 0.620 - 0.650 2.000
PMSWHB37516250 3/8-16 0.558 0.745 0.282 0.050 0.070 0.149 0.620 - 0.650 2.500
PMSWHB37516300 3/8-16 0.558 0.745 0.282 0.050 0.070 0.149 0.620 - 0.650 3.000
