Socket Head Shoulder Screw

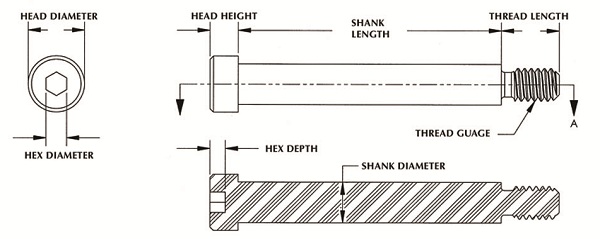

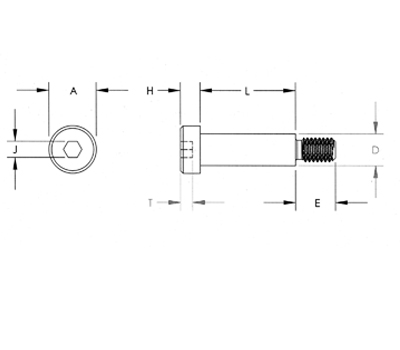

Product Number A H J Hex Depth
Min.		 L D E Thread Gage
PMSHSS37075 0.543 - 0.562 0.240 - 0.250 0.188 0.141 0.750 0.363 - 0.373 0.500 5/16-18
PMSHSS37062 0.543 - 0.562 0.240 - 0.250 0.188 0.141 0.625 0.363 - 0.373 0.500 5/16-18
PMSHSS31200 0.419 - 0.438 0.209 - 0.219 0.156 0.117 2.000 0.301 - 0.311 0.438 1/4-20
PMSHSS25175 0.357 - 0.375 0.177 - 0.188 0.125 0.094 1.750 0.238 - 0.248 0.375 10-24
PMSHSS50075 0.729 - 0.750 0.302 - 0.312 0.250 0.188 0.750 0.488 - 0.498 0.625 3/8-16
PMSHSS37100 0.543 - 0.562 0.240 - 0.250 0.188 0.141 1.000 0.363 - 0.373 0.500 5/16-18
PMSHSS50125 0.729 - 0.750 0.302 - 0.312 0.250 0.188 1.250 0.488 - 0.498 0.625 3/8-16
PMSHSS37125 0.543 - 0.562 0.240 - 0.250 0.188 0.141 1.250 0.363 - 0.373 0.500 5/16-18
PMSHSS50100 0.729 - 0.750 0.302 - 0.312 0.250 0.188 1.000 0.488 - 0.498 0.625 3/8-16
PMSHSS25200 0.357 - 0.375 0.177 - 0.188 0.125 0.094 2.000 0.238 - 0.248 0.375 10-24
PMSHSS25225 0.357 - 0.375 0.177 - 0.188 0.125 0.094 2.250 0.238 - 0.248 0.375 10-24
PMSHSS31150 0.419 - 0.438 0.209 - 0.219 0.156 0.117 1.500 0.301 - 0.311 0.438 1/4-20
PMSHSS31175 0.419 - 0.438 0.209 - 0.219 0.156 0.117 1.750 0.301 - 0.311 0.438 1/4-20
PMSHSS37150 0.543 - 0.562 0.240 - 0.250 0.188 0.141 1.500 0.363 - 0.373 0.500 5/16-18
PMSHSS37175 0.543 - 0.562 0.240 - 0.250 0.188 0.141 1.750 0.363 - 0.373 0.500 5/16-18
PMSHSS37037 0.543 - 0.562 0.240 - 0.250 0.188 0.141 0.375 0.363 - 0.373 0.500 5/16-18
PMSHSS37025 0.543 - 0.562 0.240 - 0.250 0.188 0.141 0.250 0.363 - 0.373 0.500 5/16-18
PMSHSS37050 0.543 - 0.562 0.240 - 0.250 0.188 0.141 0.500 0.363 - 0.373 0.500 5/16-18
PMSHSS50062 0.729 - 0.750 0.302 - 0.312 0.250 0.188 0.625 0.488 - 0.498 0.625 3/8-16
PMSHSS50050 0.729 - 0.750 0.302 - 0.312 0.250 0.188 0.500 0.488 - 0.498 0.625 3/8-16
PMSHSS50037 0.729 - 0.750 0.302 - 0.312 0.250 0.188 0.375 0.488 - 0.498 0.625 3/8-16
PMSHSS37225 0.543 - 0.562 0.240 - 0.250 0.188 0.141 2.250 0.363 - 0.373 0.500 5/16-18
PMSHSS37200 0.543 - 0.562 0.240 - 0.250 0.188 0.141 2.000 0.363 - 0.373 0.500 5/16-18
PMSHSS50175 0.729 - 0.750 0.302 - 0.312 0.250 0.188 1.750 0.488 - 0.498 0.625 3/8-16
PMSHSS50200 0.729 - 0.750 0.302 - 0.312 0.250 0.188 2.000 0.488 - 0.498 0.625 3/8-16
PMSHSS25100 0.357 - 0.375 0.177 - 0.188 0.125 0.094 1.000 0.238 - 0.248 0.375 10-24
PMSHSS25062 0.357 - 0.375 0.177 - 0.188 0.125 0.094 0.625 0.238 - 0.248 0.375 1024
PMSHSS25037 0.357 - 0.375 0.177 - 0.188 0.125 0.094 0.375 0.238 - 0.248 0.375 1024
PMSHSS25150 0.357 - 0.375 0.177 - 0.188 0.125 0.094 1.500 0.238 - 0.248 0.375 1024
PMSHSS25025 0.357 - 0.375 0.177 - 0.188 0.125 0.094 0.250 0.238 - 0.248 0.375 1024
PMSHSS25125 0.357 - 0.375 0.177 - 0.188 0.125 0.094 1.250 0.238 - 0.248 0.375 1024
PMSHSS31100 0.419 - 0.438 0.209 - 0.219 0.156 0.117 1.000 0.301 - 0.311 0.438 1/4-20
PMSHSS25050 0.357 - 0.375 0.177 - 0.188 0.125 0.094 0.500 0.238 - 0.248 0.375 1024
PMSHSS25075 0.357 - 0.375 0.177 - 0.188 0.125 0.094 0.750 0.238 - 0.248 0.375 1024
PMSHSS31075 0.419 - 0.438 0.209 - 0.219 0.156 0.117 0.750 0.301 - 0.311 0.438 1/4-20
PMSHSS31050 0.419 - 0.438 0.209 - 0.219 0.156 0.117 0.500 0.301 - 0.311 0.438 1/4-20
PMSHSS31037 0.419 - 0.438 0.209 - 0.219 0.156 0.117 0.375 0.301 - 0.311 0.438 1/4-20
PMSHSS31062 0.419 - 0.438 0.209 - 0.219 0.156 0.117 0.625 0.301 - 0.311 0.438 1/4-20
PMSHSS31031 0.419 - 0.438 0.209 - 0.219 0.156 0.117 0.312 0.301 - 0.311 0.438 1/4-20
PMSHSS31025 0.419 - 0.438 0.209 - 0.219 0.156 0.117 0.250 0.301 - 0.311 0.438 1/4-20
