Metric Hex Socket Cap Machine Screws


All Dimensions are in Millimeters

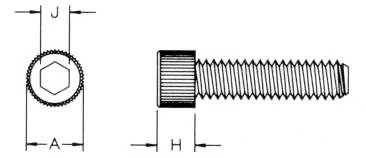

Product Number Thread Size A H J Hex Depth Length
SCM10C013HKNP
M10 X 1.50 15.67 - 16.00 9.81 - 10.0 8.0 Nom. 5.00 Min. 13
SCM10C016HKNP M10 X 1.50 15.67 - 16.00 9.81 - 10.0 8.0 Nom. 5.00 Min. 16
SCM10C019HKNP M10 X 1.50 15.67 - 16.00 9.81 - 10.0 8.0 Nom. 5.00 Min. 19
SCM10C020HKNP M10 X 1.50 15.67 - 16.00 9.81 - 10.0 8.0 Nom. 5.00 Min. 20
SCM10C025HKNP M10 X 1.50 15.67 - 16.00 9.81 - 10.0 8.0 Nom. 5.00 Min. 25
SCM10C030HKNP M10 X 1.50 15.67 - 16.00 9.81 - 10.0 8.0 Nom. 5.00 Min. 30
SCM10C035HKNP M10 X 1.50 15.67 - 16.00 9.81 - 10.0 8.0 Nom. 5.00 Min. 35
SCM10C050HKNP M10 X 1.50 15.67 - 16.00 9.81 - 10.0 8.0 Nom. 5.00 Min. 50
SCM10C060HKNP M10 X 1.50 15.67 - 16.00 9.81 - 10.0 8.0 Nom. 5.00 Min. 60

Nominal Screw Size M1.6 thru M10 M12 thru M20 Over M20
Nominal Screw Length Tolerance on Length, mm
Up to 16mm, incl. 0.3 0.3 -
Over 16 to 50mm, incl. 0.4 0.4 0.7
Over 50 to 120mm, incl. 0.7 1.0 1.5
Over 120 to 200mm, incl. 1.0 1.5 2.0
Over 200mm 2.0 2.5 3.0
