Oval OD Washers : Apex Fasteners

Product 6/12

Return to the Product List

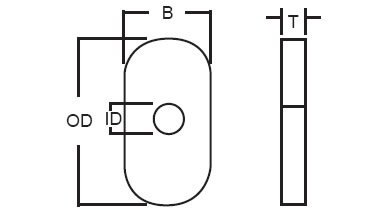

All Measurements in Inches.

Basic Part Number	ID	OD	Thickness	B
WOODW.191.750.060.620	0.191	0.750	0.060	0.620
WOODW.193.745.100.500	0.193	0.745	0.100	0.500
WOODW.203.500.050.445	0.203	0.500	0.050	0.445
WOODW.3281.187.040.750	0.328	1.187	0.040	0.750
WOODW.4851.500.0931.375	0.485	1.500	0.093	1.375
WOODW.5311.900.125.812	0.531	1.900	0.125	0.812
WOODW.8751.625.1001.375	0.875	1.625	0.100	1.375
