Pushnut® Fasteners Arched Round Type, Metric

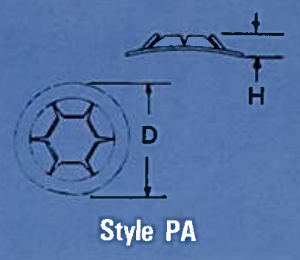

Style PA

StylePA.png		 Style PS


Basic Part Numbers Nom. Stud. Dia. mm Series Outside Dia. - D mm Height - H mm Material Thickness mm Max. Push - On Force *N Min. Holding Strength *N
PS320309 3.2 light 9.5 1.14 0.25 66.7 578.5
PA040311 4.0 light 11.1 2.13 0.25 68 267.0
PS060313 6 light 13.5 1.45 0.25 111.0 1780.0
PA100319 10 light 19.0 2.54 0.43 222.5 3115.0
PS100319 10 light 19.0 1.40 0.43 222.5 3115.0
PS100019 10 heavy 19.0 1.88 0.69 378.2 4895.0
PS110022 11 - 22.2 2.46 0.76 333.7 6675.0
PS130025 13 - 25.4 est. 2.80 0.89 445.0 8900.0

*N - Newtons = 9.8 Kgm  *Nm - Newton meters = 980 Kgm-Cm

Palnut metric fasteners

Pushnut Fasteners Arched Round Type
