Pushnut® Bolt Retainers, Metric

Parts fit all pitches for given nominal diameter.

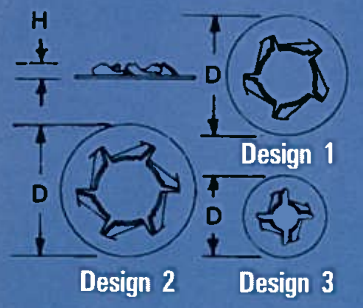

Basic Part Numbers Nom. Dia. mm Design Outside Dia. - D mm +/- .8mm Height - H mm Material Thickness mm Max. Push - On Force *N Min. Holding Strength *N
PT350009 3.5 2 8.7 1.19 0.20 75.7 178.0
PT040010 4 3 9.52 1.27 0.25 97.9 222.5
PT040013 4 3 12.7 1.27 0.25 97.9 222.5
PT050011 5 3 11.1 1.70 0.30 111.2 289.2
PT060013 6 1 12.7 2.18 0.25 111.2 400.5
PT060016 6 1 15.8 2.18 0.25 111.2 400.5
PT060017 6 1 16.9 2.18 0.25 111.0 400.5
PT630013 6.3 1 12.7 1.98 0.25 111.2 400.5
PT080016 8 1 15.9 2.10 0.36 155.7 445.0
PT080029 8 1 29.0 2.10 0.36 155.7 445.0
PZ002020 8 1 23.9 2.55 0.34 133.4 1224.0
PT100920 10 2 20.0 2.74 0.76 155.7 445.0
PT100020 10 2 19.9 2.46 0.38 155.7 667.5
PZ001957 10 2 23.9 2.62 0.36 155.7 1335.0
PT110021 11 2 20.9 2.62 0.38 155.7 1224.0
PT120021 12 2 21.3 2.95 0.38 111.2 1335.0
PT140025 14 2 25 3.42 0.38 111.2 1335.0

*N - Newtons = 9.8 Kgm  *Nm - Newton meters = 980 Kgm-Cm

Palnut metric fasteners

Pushnut Bolt Retainers
