Home / Spring Steel Fasteners / Palnut® Fasteners / Metric Palnuts® / Insert Fasteners, Metric

Product 3/18

Return to the Product List

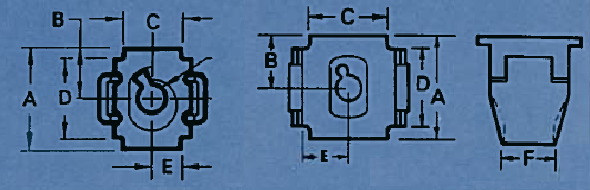

Basic Part Numbers	Panel Hole Dimension	Panel Thickness Range	Screw Size	A	B	C	D	E	F	G	H	I
PTS-428101	(Below)	0.70- 1.00mm (0.028- 0.039")	4.2mm x 1.41mm (8-18)	5.18 (0.204)	5.20 (0.205)	6.45 (0.254)	7.75 (0.305)	3.22 (0.127)	6.85 (0.270)	7.75 (0.305)	11.0 (0.433)	11.1 (0.437)
IPPS-429925	9 x 11mm (0.354 x 0.433")	2.3- 2.8mm (0.090- 0.110")	4.2mm x 1.41mm (8-18)	11.8 (0.465)	5.9 (0.232)	8.5 (0.335)	8.75 (0.344)	5.37 (0.211)	6.0 (0.236)	10.75 (0.423)	13.35 (0.526)	12.3 (0.484)
IPPS-428025	8 x 10mm (0.315 x 0.394")	2.1- 2.5mm (0.083- 0.098")	4.2mm x 1.41mm (8-18)	10.6 (0.417)	5.3 (0.209)	6.5 (0.256)	7.70 (0.303)	4.87 (0.192)	4.2 (0.165)	9.75 (0.384)	12.55 (0.494)	12.3 (0.484)

Recommended Panel Hole Dimensions
R	L
0-0.3	8.65-8.75
0.95-1.05	8.90-9.10
1.42-1.53	9.16-9.36
Deviation from the above R/L recommendations could Adversely affect product function.

Palnut insert panel retained nut offers a heat treated, spring steel, single thread form in a snap-in style fastener. The nuts are recommended for application in metal panels of 0.70mm/1mm or 0.028-0.039" thickness, with a hole dimension of 8mm or 5/16" square.

Palnut metric fasteners

Insert Fasteners

Product 3/18

Return to the Product List
