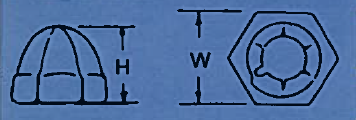

Acorn Type Locknut, Metric

Style AC


Basic Part Numbers
Nom. Dia. mm Pitch mm No. of Notches
 Hex-W mm Height-H mm Material Thickness mm Tightening Torque *Nm Clamping Force *N
AC350008
 3.5
 0.6
 1 Notch
5 Slits
 8
 6.60
 0.33
 0.8
 445
AC040009
 4
 0.7
 1 Notch
5 Slits
 9
 7.65
 0.33
 1.1
 534
AK040008
 4
 0.7
 1 Notch
5 Slits
 8
 5.64
 0.33
 1.1 534
AC050010
 5
 0.8
 1 Notch
5 Slits
 10
 8.25
 0.33
 1.7
 668
AC060011
 6
 1.0
 6
 11
 9.40
 0.43
 3.7
 1335
AC080014
 8
 1.25
 6
 14
 11.5
 0.53
 7.3
 2002
AC100015
 10
 1.50
 6
 15
 13.1
 0.53
 9.0
 2092

*N - Newtons = 9.8 Kgm  *Nm - Newton meters = 980 Kgm-Cm

Palnut metric fasteners

Acorn Type Locknuts
