Threaded Lampcord Bushings are molded in tough Black Heat Stabilized Nylon (Underwriters Laboratories Rated 94V2, Temperature Index 105ºC). We have available from stock the most popular sizes of Threaded Lampcord Bushings. These bushings are designed to protect the electrical lampcord from the knife-edge of the threaded pipe used in light fixtures. They will easily thread onto standard lamp fixture 1/8 NPS and 1/4 NPS threaded ends. Our bushings will provide reliable, safe, and insulated connections.

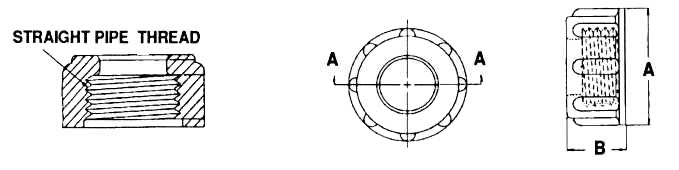

Product Number	Description	A	B
PMPTLB0125	1/8 NPS	0.593	0.281
PMPTLB0250	1/4 NPS	0.718	0.375
PMPTLB0375	3/8 NPS	0.875	0.437
PMPTLB0500	1/2 NPS	1.062	0.375
