Standard Insulating Bushings


These bushings are available in a large selection of sizes from 1/4" to 2" in various inside diameter openings. Standard bushings are designed with multiple locks to positively snap in panels ranging from 1/32" to 1/8" thickness.

Standard bushings meet Underwriters Laboratories and Canadian Standards Association temperature and pull-out tests.

Molded in heat stabilized nylon UL94V2 black. Colors available upon request.

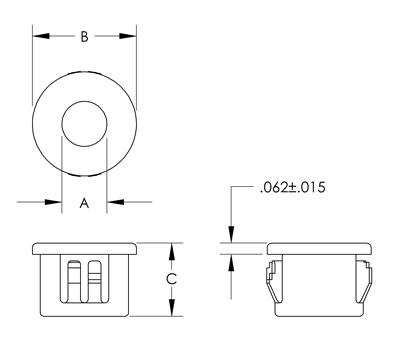

Product Number Package Qty Inside Dia. A Head Dia. B Thickness C Hole Dia. Max. Thickness
PMPSIB02502 1000 0.125 0.312 0.312 0.250 0.062
PMPSIB03123 1000 0.187 0.375 0.312 0.312 0.062
PMPSIB03753 1000 0.187 0.468 0.406 0.375 0.125
PMPSIB03754 1000 0.250 0.468 0.406 0.375 0.125
PMPSIB04374 1000 0.250 0.531 0.406 0.437 0.125
PMPSIB04375 1000 0.312 0.531 0.406 0.437 0.125
PMPSIB04376 1000 0.243 0.531 0.406 0.437 0.125
PMPSIB05004 1000 0.250 0.578 0.406 0.500 0.125
PMPSIB05005 1000 0.312 0.578 0.406 0.500 0.125
PMPSIB05006 1000 0.375 0.578 0.406 0.500 0.125
PMPSIB05625 1000 0.312 0.656 0.406 0.562 0.125
PMPSIB05626 1000 0.375 0.656 0.406 0.562 0.125
PMPSIB05627 1000 0.437 0.656 0.413 0.562 0.125
PMPSIB06254 1000 0.250 0.718 0.406 0.625 0.125
PMPSIB06257 1000 0.437 0.718 0.406 0.625 0.125
PMPSIB06258 1000 0.500 0.718 0.406 0.625 0.125
PMPSIB06878 1000 0.500 0.781 0.406 0.687 0.125
PMPSIB06879 1000 0.562 0.781 0.406 0.687 0.125
PMPSIB07506 1000 0.375 0.843 0.406 0.750 0.125
PMPSIB07508 1000 0.500 0.843 0.406 0.750 0.125
PMPSIB07509 1000 0.562 0.843 0.406 0.750 0.125
PMPSIB07510 1000 0.625 0.843 0.406 0.750 0.125
PMPSIB08109 1000 0.562 0.890 0.406 0.812 0.125
PMPSIB08110 1000 0.625 0.890 0.406 0.812 0.125
PMPSIB08706 1000 0.375 0.953 0.453 0.875 0.125
PMPSIB08707 500 0.437 0.953 0.453 0.875 0.125
PMPSIB08708 500 0.500 0.953 0.453 0.875 0.125
PMPSIB08709 500 0.562 0.953 0.453 0.875 0.125
PMPSIB08710 500 0.625 0.953 0.453 0.875 0.125
PMPSIB08711 500 0.687 0.953 0.453 0.875 0.125
PMPSIB10012 500 0.750 1.125 0.453 1.000 0.125
PMPSIB10913 500 0.812 1.218 0.453 1.093 0.125
PMPSIB10914 500 0.875 1.218 0.453 1.093 0.125
PMPSIB10915 500 0.937 1.218 0.453 1.093 0.125
PMPSIB11815 250 0.937 1.312 0.453 1.187 0.125
PMPSIB12515 250 0.937 1.359 0.453 1.250 0.125
PMPSIB13716 250 1.000 1.468 0.453 1.375 0.125
PMPSIB15017 250 1.062 1.609 0.453 1.500 0.125
PMPSIB15018 250 1.125 1.609 0.453 1.500 0.125
PMPSIB15021 250 1.312 1.609 0.453 1.509 0.125
PMPSIB17522 250 1.375 1.875 0.453 1.750 0.125
PMPSIB20026 250 1.625 2.125 0.453 2.000 0.125
