"EZ" Strain Relief Bushings

"EZ" Strain Relief Bushing is designed to save money. This Strain Relief Bushing eliminates several costly and fatigue prone assembly steps.

To install, the "EZ" Bushing hinged halves are simply folded over the wire or cable. No special orientation or alignment is necessary! Conventional Strain Relief Pliers are applied to the specially designed gripped grooves and the bushing is inserted and locked in place in one smooth motion. The "EZ" Strain Relief Bushing design incorporates a bullet shaped, streamlined nose and does away with the large cumbersome straps that complicate the assembly of the conventional style bushing in confined areas. "EZ" Strain Relief Bushings securely anchor, absorb, and protect cables and wires from pushpull and twist forces and insulate them from irregular or sharp panel edges. These tough nylon bushings meet all Underwriters Laboratories stringent pull-out and temperature specifications, and meet Canadian Standards Association Requirements. Molded of heat stabilized nylon UL94V2 black. Colors available upon request.

• EASILY INSTALLED
• COMPETITIVELY PRICED
• SECURE IN USE
• FULLY APPROVED

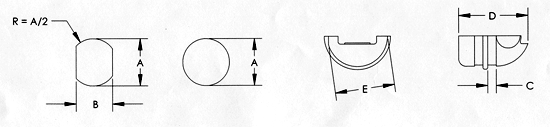

Product Number	Package Qty	Dia. A	Flats B	Max. Panel Thk. C	Length D	Width E	Cross Sec.	Cable Size	Cable Type	Gauge
PMP04KEZS	1000	0.500	0.465	0.100	0.580	0.510	Flat	.150 X .280	SPT	16/2, 18/2
PMP04NEZS	1000	0.500	0.465	0.062	0.570	0.500	Flat	.150 X .280, .160 X .300	SPT	18/2, 16/2
PMP06N34EZ	1000	0.650	0.550	0.062	0.655	0.585	Round	0.3, 0.355, 0.405	SJT, SJ, SJT	16/3, 16/3, 18/3

Packaged 1000 Per Bag - Must be purchased in packaged quantity.
