Strain Relief Bushings

Our one piece Strain Relief Bushings securely anchor, absorb, and protect cables and wires from push/pull and twist forces, while insulating them from irregular or sharp panel edges. Most of these tough Nylon bushings meet all Underwriters Laboratories' stringent pull-out and temperature specifications and meet Canadian Standards Association Requirements. They are easily and quickly installed with Our special installation pliers or other hand or production tools. Stock sizes are in black H.S. Nylon, and the temperature index is 105º Centigrade (U.L. rated 94v2). Colors available upon request.

NOTE: PMPSRB02L10, PMPSRB02P40, and PMPSRB13L10 not UL Recognized

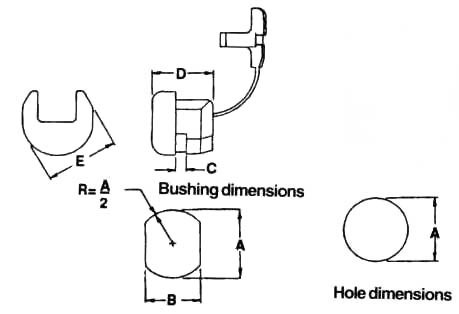

Product Number	Package Qty	Cross Section	Cable Size	Cable Type	Gauge	Strap Type	Flats B	Max. Panel Thk. C	Length D	Width E	Dia. A
PMPSRB02L10	1000	Flat	.120 X .220	SPT-1	18/2	"Y"	0.330	0.125	0.410	0.420	0.375
PMPSRB02M40	1000	Round	.156 X .187	AWN	14.000	"Y"	0.330	0.062	0.410	0.440	0.375
PMPSRB02M50	1000	Round	.125 X .156	AWN	16.000	"Y"	0.330	0.062	0.410	0.432	0.400
PMPSRB02P40	1000	Flat	.120 X .220	SPT-1	18/2	"Y"	0.330	0.062	0.410	0.420	0.375
PMPSRB03P40	1000	Flat	0.120 X 0.220, 0.120 X 0.220	SP-1, SPT-1	18/2, 18/2	"Y"	0.390	0.062	0.405	0.484	0.437
PMPSRB04J40	1000	Flat	.120 X .300	SPT-1, SPT-2, HPN	18/3, 18/2, 18/2	"Y"	0.465	0.032	0.406	0.578	0.500
PMPSRB04K10	1000	Flat	0.150 X 0.400, 0.160 X 0.300, 0.160 X 0.300, 0.150 X 0.280, 0.150 X 0.280	SPT-2, HPN, SPT-2, HPN, SPT-2	18/3, 16/2, 16/2, 18/2, 18/2	"Y"	0.460	0.095	0.495	0.565	0.500
PMPSRB04K1Z	1000	Flat	0.150 X 0.400, 0.160 X 0.300, 0.160 X 0.300, 0.150 X 0.280, 0.150 X 0.280	SPT-2, HPN, SPT-2, HPN, SPT-2	18/3, 16/2, 16/2, 18/2, 18/2	"Z"	0.460	0.095	0.495	0.565	0.500
PMPSRB04K40	1000	Flat	.120 X .300	SPT-2, HPN	18/2, 18/2	"Y"	0.465	0.100	0.406	0.565	0.500
PMPSRB04L10	1000	Flat	0.150 X 0.400, 0.160 X 0.300, 0.160 X 0.300, 0.150 X 0.280, 0.150 X 0.280	SPT-1, HPN, SPT-2, HPN, SPT-2	18/3, 16/2, 16/2, 18/2, 18/2	"Z"	0.460	0.187	0.495	0.565	0.525
PMPSRB04L40	1000	Flat	.120 X .300	SPT-1, SPT-2, HPN	18/3, 18/2, 18/2	"Y"	0.465	0.156	0.406	0.578	0.500
PMPSRB04N40	1000	Flat	.120 X .300	SPT-2, HPN	18/2, 18/2	"Y"	0.465	0.062	0.406	0.578	0.500
PMPSRB05K40	1000	Flat	.150 X .400	SPT-2	16/2	"Y"	0.530	0.125	0.609	0.625	0.562
PMPSRB05KN4	1000	Flat	0.150 X 0.400, 0.160 X 0.300	SPT-2, SPT-2	18/3, 16/2	"Y"	0.530	0.062	0.609	0.625	0.562
PMPSRB05N40	1000	Round	0.250, 0.250, 0.255, 0.255, 0.290	SV, SVT, SV, SVT, HPD	18/2, 18/2, 18/3, 18/3, 16/2	"Y"	0.450	0.062	0.448	0.578	0.500
PMPSRB05P40	1000	Round	0.250, 0.250, 0.255, 0.255, 0.290	SV, SVT, SV, SVT, HPD	18/2, 18/2, 18/3, 18/3, 16/2	"Y"	0.450	0.100	0.448	0.578	0.500
PMPSRB05W10	1000	Flat	0.120 x 0.300, 0.160 X 0.300, 0.160 X 0.410, 0.160 X 0.370	SPT-2, SPT-2, SPT-2, HPN	18/3, 16/2, 16/3, 16/3	"Y"	0.530	0.125	0.609	0.625	0.562
PMPSRB06L10	500	Round	.325 X .360	SJ, SJT, SJO	18/2, 18/3, 16/2, 16/3, 16/2, 16/3	"Z"	0.550	0.125	0.666	0.725	0.625
PMPSRB06N34	1000	Round	0.355, 0.405, 0.430	SJ, SJT, SJT	16/3, 18/3, 16/3	"Y"	0.550	0.062	0.595	0.703	0.625
PMPSRB06N35	1000	Round	0.390, 0.390, 0.405, 0.405, 0.390	SJO, SJ, SJT, SJO, SJT	18/2, 18/2, 16/2, 18/2, 18/2	"Y"	0.550	0.062	0.580	0.703	0.625
PMPSRB06N40	500	Round	0.300, 0.300	SJT, SJO	18/2, 18/2	"Y"	0.550	0.062	0.585	0.703	0.625
PMPSRB06N44	500	Flat	.120 X .300	SPT-1	18/3	"Y"	0.570	0.062	0.600	0.690	0.625
PMPSRB06N45	500	Flat	.120 X .300	SPT-1	18/3	"Y"	0.545	0.032	0.590	0.690	0.625
PMPSRB06P34	500	Round	.325 X .360	SJ, SJT, SJT, SJO	18/3, 16/3, 18/3, 18/3	"Y"	0.550	0.125	0.595	0.703	0.625
PMPSRB06P35	500	Round	.325 X .360	SJ, SJ, SJ, SJT, SJT, SJO, SJO, SJO	18/2, 18/3, 16/2, 16/2, 18/2, 18/2, 16/2, 18/3	"Y"	0.550	0.125	0.580	0.703	0.625
PMPSRB06P40	500	Round	0.300	SJ, SJT, SJO	18/2	"Y"	0.550	0.125	0.590	0.703	0.625
PMPSRB06W10	1000	Round	0.300	SJ, SJT, SJO	18/2	"Y"	0.465	0.090	0.437	0.563	0.500
PMPSRB07K20	250	Round	.325 X .360	SJ, SJ, SJ, SJ, SJT, SJT, SJO, SJO, SJO	18/4, 16/2, 16/3, 14/2, 18/3, 16/3, 14/2, 16/3, 18/4	"Z"	0.770	0.125	0.755	0.922	0.875
PMPSRB07K30	250	Round	.325 - .360	SJ, SJ, SJT, SJO, SJO	18/3, 16/2, 16/2, 18/3, 16/2	"Z"	0.770	0.125	0.750	0.922	0.875
PMPSRB07P20	500	Round	0.360, 0.370, 0.405, 0.430, 0.405, 0.430, 0.405, 0.390, 0.390, 0.405	SJTO, SJT, S, S, STO, STO, S, S, STO, STO	18/4, 14/3, 18/3, 16/3, 18/3, 16/3, 16/2, 18/2, 18/2, 16/2	"X"	0.660	0.125	0.745	0.830	0.750
PMPSRB07P30	500	Flat	.160 X .410	SPT-2	16/3	"Z"	0.657	0.125	0.590	0.785	0.736
PMPSRB07W20	250	Round	0.370 - 0.425, 0.370 - 0.425, 0.390 - 0.430, 0.390 - 0.430, 0.390 - 0.430, 0.390 - 0.430, 0.390 - 0.430	SJT, SJT, S, S, STO, STO, STO	14/3, 12/3, 18/3, 16/3, 16/2, 16/3, 18/3	"Z"	0.770	0.125	0.760	0.922	0.875
PMPSRB08P20	250	Round	.530 - .600	S, S, ST	14/2, 14/3, 12/2	"Z"	0.840	0.125	0.812	0.922	0.875
PMPSRB09P20	100	Round	0.570, 0.640, 0.650, 0.700	S	12/3, 10/2, 10/3	"Z"	1.000	0.281	0.990	1.215	1.093, 1.125, 1.093, 1.187
PMPSRB14L10	1000	Flat	0.150 X 0.280, 0.150 X 0.280, 0.160 X 0.300	SPT-2, SPT-2, HPN	18/2, 16/2, 16/2	"Z"	0.450	0.100	0.687	0.550	0.500
PMPSRB15L10	1000	Round	.250 X .265	SV	18/2, 18/3	"Z"	0.450	0.100	0.687	0.562	0.500
PMPSRB16L10	500	Flat	0.150 X 0.400, 0.160 X 0.370, 0.190 X 0.350, 0.200 X 0.370	SP-2, HPN, SPT-3, SPT-3	18/3, 16/3, 18/2, 16/2	"Z"	0.525	0.125	0.875	0.625	0.562
PMPSRB30-10	500	Flat	0.160 X 0.410, 0.120 X 0.300	SPT-2, SPT-1	16/3, 16/3	"Z"	0.730	0.125	0.670	0.750	0.560
PMPSRB03020	1000	Flat	0.150 X 0.400, 0.160 X 0.410, 0.320 X 0.650	SPT-2, SPT-2, SPT-3	18/3, 18/3, 16/3	"Z"	0.625	0.100	0.460	0.660	.625 X .375
PMPSRB31-20	250	Flat, Round	0.180 - 0.425 , 0.425 - 0.475	SJT, SPT-3	12/3, 12/3	"Z"	0.840	0.125	0.812	0.922	0.875
PMPSRB33-10	500	Flat	0.245 X 0.425, 0.240 X 0.420, 0.240 X 0.525	SPT-3, SPT-3, HPN	16/3, 14/2, 14/3	"Z"	0.875	0.125	0.770	0.895	.750 X .875
PMPSRB34-2X	250	Flat	0.240 X 0.420, 0.290 X 0.650	SPT-3, SPT-3	14/3, 12/3	"X"	0.840	0.125	0.812	0.905	0.875
