Unslotted Knurled Head Spin Clip : Apex Fasteners

Product 34/38

Return to the Product List

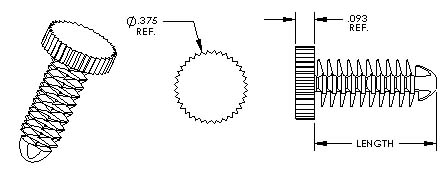

This design combines the advantages of a push-in fastener with a screw. For fast assembly, the part can be pushed into a 1/4-20 threaded hole, and then screwed in for a tighter fit, or screwed out for disassembly.

This part will also function as a standard Fin Clip for use in a unthreaded hole with a diameter of approximately 13/64".

Product Number	Description	Length
PMUKHSC2520037	1/4-20	3/8
PMUKHSC2520050	1/4-20	1/2
PMUKHSC2520062	1/4-20	5/8
PMUKHSC2520075	1/4-20	3/4
PMUKHSC2520100	1/4-20	1.000 (+/- 0.008)
