Metric Slotted Grub Screws


All Dimensions are in Millimeters

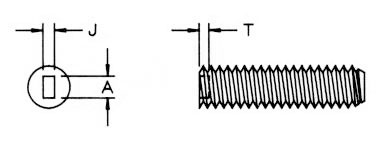

Product Number Thread Size A J T Length
PMSGSM040070003 M4 X 0.70 2.0 0.64 0.76 3
PMSGSM040070006 M4 X 0.70 2.0 0.64 0.76 6
PMSGSM040070008 M4 X 0.70 2.0 0.64 0.76 8
PMSGSM040070010 M4 X 0.70 2.0 0.64 0.76 10
PMSGSM040070012 M4 X 0.70 2.0 0.64 0.76 12
PMSGSM040070016 M4 X 0.70 2.0 0.64 0.76 16
PMSGSM040070020 M4 X 0.70 2.0 0.64 0.76 20
PMSGSM040070025 M4 X 0.70 2.0 0.64 0.76 25
PMSGSM040070030 M4 X 0.70 2.0 0.64 0.76 30
PMSGSM040070035 M4 X 0.70 2.0 0.64 0.76 35
PMSGSM040070040 M4 X 0.70 2.0 0.64 0.76 40
PMSGSM050080006 M5 X 0.80 3.3 0.89 1.30 6
PMSGSM050080008 M5 X 0.80 3.3 0.89 1.30 8
PMSGSM050080010 M5 X 0.80 3.3 0.89 1.30 10
PMSGSM050080012 M5 X 0.80 3.3 0.89 1.30 12
PMSGSM050080016 M5 X 0.80 3.3 0.89 1.30 16
PMSGSM050080020 M5 X 0.80 3.3 0.89 1.30 20
PMSGSM050080025 M5 X 0.80 3.3 0.89 1.30 25
PMSGSM050080030 M5 X 0.80 3.3 0.89 1.30 30
PMSGSM050080040 M5 X 0.80 3.3 0.89 1.30 40
PMSGSM060100005 M6 X 1.00 4.1 1.00 1.50 5
PMSGSM060100008 M6 X 1.00 4.1 1.00 1.50 8
PMSGSM060100010 M6 X 1.00 4.1 1.00 1.50 10
PMSGSM060100012 M6 X 1.00 4.1 1.00 1.50 12
PMSGSM060100016 M6 X 1.00 4.1 1.00 1.50 16
PMSGSM060100020 M6 X 1.00 4.1 1.00 1.50 20
PMSGSM060100022 M6 X 1.00 4.1 1.00 1.50 22
PMSGSM060100025 M6 X 1.00 4.1 1.00 1.50 25
PMSGSM060100030 M6 X 1.00 4.1 1.00 1.50 30
PMSGSM060100035 M6 X 1.00 4.1 1.00 1.50 35
PMSGSM060100045 M6 X 1.00 4.1 1.00 1.50 45
PMSGSM060100050 M6 X 1.00 4.1 1.00 1.50 50
PMSGSM060100060 M6 X 1.00 4.1 1.00 1.50 60
PMSGSM060100070 M6 X 1.00 4.1 1.00 1.50 70
PMSGSM060100075 M6 X 1.00 4.1 1.00 1.50 75
PMSGSM080125008 M8 X 1.25 5.1 1.60 2.20 8
PMSGSM080125010 M8 X 1.25 5.1 1.60 2.20 10
PMSGSM080125016 M8 X 1.25 5.1 1.60 2.20 16
PMSGSM080125020 M8 X 1.25 5.1 1.60 2.20 20
PMSGSM080125025 M8 X 1.25 5.1 1.60 2.20 25
PMSGSM080125030 M8 X 1.25 5.1 1.60 2.20 30
PMSGSM080125035 M8 X 1.25 5.1 1.60 2.20 35
PMSGSM080125050 M8 X 1.25 5.1 1.60 2.20 50
PMSGSM100150013 M10 X 1.50 6.6 1.50 2.50 13
PMSGSM100150016 M10 X 1.50 6.6 1.50 2.50 16
PMSGSM100150019 M10 X 1.50 6.6 1.50 2.50 19
PMSGSM100150020 M10 X 1.50 6.6 1.50 2.50 20
PMSGSM100150025 M10 X 1.50 6.6 1.50 2.50 25
PMSGSM100150030 M10 X 1.50 6.6 1.50 2.50 30
PMSGSM100150035 M10 X 1.50 6.6 1.50 2.50 35
PMSGSM100150050 M10 X 1.50 6.6 1.50 2.50 50
PMSGSM100150060 M10 X 1.50 6.6 1.50 2.50 60
PMSGSM040070004 M4 X 0.70 2.0 0.64 0.76 4
PMSGSM100150010 M10 X 1.5 6.6 1.50 2.50 10

Nominal Screw Length Tolerance on Length
mm
to 3mm incl. 0.2
over 3 to 10mm 0.3
over 10 to 16mm 0.4
over 16 to 50mm 0.5
over 50mm 1.0
All tolerances are plus and minus
