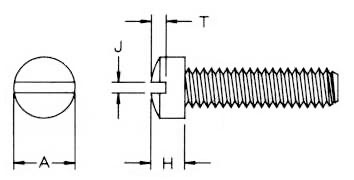

Slotted Fillister Machine Screw in Polycarbonite


Product Number Thread Size A H J T Length
PMSFMSPC0440025 440 0.166 - 0.183 0.088 - 0.107 0.031 - 0.039 0.035 - 0.048 0.250
PMSFMSPC0440028 440 0.166 - 0.183 0.088 - 0.107 0.031 - 0.039 0.034 - 0.048 0.281
PMSFMSPC0440037 440 0.166 - 0.183 0.088 - 0.107 0.031 - 0.039 0.035 - 0.048 0.375
PMSFMSPC0440050 440 0.166 - 0.183 0.088 - 0.107 0.031 - 0.039 0.035 - 0.048 0.500
PMSFMSPC0632025 632 0.208 - 0.226 0.111 - 0.132 0.039 - 0.048 0.045 - 0.060 0.250
PMSFMSPC0632037 632 0.208 - 0.226 0.111 - 0.132 0.039 - 0.048 0.045 - 0.060 0.375
PMSFMSPC0632050 632 0.208 - 0.226 0.111 - 0.132 0.039 - 0.048 0.045 - 0.060 0.500
PMSFMSPC0632062 632 0.208 - 0.226 0.111 - 0.132 0.039 - 0.048 0.045 - 0.060 0.625
PMSFMSPC0632075 632 0.208 - 0.226 0.111 - 0.132 0.039 - 0.048 0.045 - 0.060 0.750
PMSFMSPC0832012 832 0.250 - 0.270 0.133 - 0.156 0.045 - 0.054 0.054 - 0.071 0.125
PMSFMSPC0832025 832 0.250 - 0.270 0.133 - 0.156 0.045 - 0.054 0.054 - 0.071 0.250
PMSFMSPC0832037 832 0.250 - 0.270 0.133 - 0.156 0.045 - 0.054 0.054 - 0.071 0.375
PMSFMSPC0832050 832 0.250 - 0.270 0.133 - 0.156 0.045 - 0.054 0.054 - 0.071 0.500
PMSFMSPC0832062 832 0.250 - 0.027 0.133 - 0.156 0.045 - 0.054 0.054 - 0.071 0.625
PMSFMSPC0832075 832 0.250 - 0.270 0.133 - 0.156 0.045 - 0.054 0.054 - 0.071 0.750
PMSFMSPC1032025 1032 0.292 - 0.313 0.156 - 0.180 0.050 - 0.060 0.064 - 0.083 0.250
PMSFMSPC1032037 1032 0.292 - 0.313 0.156 - 0.180 0.050 - 0.060 0.064 - 0.083 0.375
PMSFMSPC1032050 1032 0.292 - 0.313 0.156 - 0.180 0.050 - 0.060 0.064 - 0.083 0.500
PMSFMSPC1032062 1032 0.292 - 0.313 0.156 - 0.180 0.050 - 0.060 0.064 - 0.083 0.625
PMSFMSPC1032075 1032 0.292 - 0.313 0.156 - 0.180 0.050 - 0.060 0.064 - 0.083 0.750
PMSFMSPC1032100 1032 0.292 - 0.313 0.156 - 0.180 0.050 - 0.060 .064 - .083 1.000

Nominal Screw Size 0000 thru 00 0 thru 12 1/4 thru 3/4
Nominal Screw Length Tolerance on Length
Up to 1/2 in., incl. -0.01 -0.02 -0.03
Over 1/2 to 1 in., incl. -0.02 -0.03 -0.03
Over 1 to 2 in., incl. - -0.06 -0.06
Over 2 in. - -0.09 -0.09
