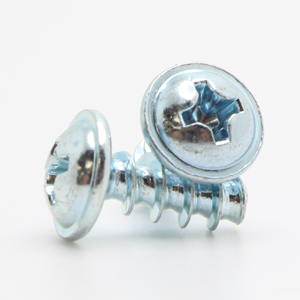

WN1411: Phillips Drive, Round Washer Head

WN 1411

All dimensions are in mm.

Nominal diameter
 K 30
 K 35
 K 40
 K 50
 K 60
 K 70
External thread diameter
 d1
 3.0
 3.5
 4.0
 5.0
 6.0
 7.0
Thread core diameter
 d2
 1.66
 1.91
 2.17
 2.68
 3.19
 3.7
Thread pitch
 P
 1.34
 1.57
 1.79
 2.24
 2.69
 3.14
Thread run-out X max. Standard L >
 3.0
 3.5
 4.0
 5.0
 6.0
 7.0

Shortened L ≤
 1.5
 1.8
 2.0
 2.5
 3.0
 3.5
Head Diameter
 D
 6.0
 7.0
 8.0
 10.0
 12.0
 14.0
Head Height
 K
 2.1
 2.4
 2.5
 3.2
 4.0
 4.6
Washer thickness
 S
 0.7
 0.8
 0.9
 1.1
 1.3
 1.5
H-Cross Recess
Width / size
Depth
 t
 ~m
 2.9/1
 3.5/2
 4.2/2
 4.8/2
 6.4/3
 7.0/3
min.
 1.15
 1.07
 1.33
 1.98
 2.24
 2.84
max.
 1.61
 1.70
 1.96
 2.61
 2.90
 3.50
Z-Cross Recess
Width / size
Depth
 t
 ~m
 2.8/1
 3.8/2
 4.1/2
 4.7/2
 6.3/3
 7.0/3
min.
 1.26
 1.08
 1.40
 2.01
 2.27
 2.91
max.
 1.51
 1.54
 1.86
 2.47
 2.73
 3.37


WN1411 - PT ® - Phillips Drive, Round Washer Head
