Type 23 Thread Cutting Screws Steel Zinc

Type 23 Steel Zinc

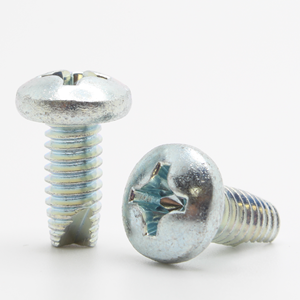

Hardened Steel Type 23 (Also Known as Type T or T Point) thread cutting screws are made for use in harder metals such as steel, alloy steel and cast iron. They utilize a standard machine screw thread. They can be used on metals of any thickness and can be used repeatedly as needed. Extremely strong, these screws can often be employed in much smaller sizes than machine screws. Commonly available in heat treated, hardened steel though alternative materials such as brass, stainless steel and aluminum are possible via special order.
Sample Part Numbers and Descriptions
(This is not our entire line of Type 23 Thread Cutting Screws)

Please Contact Us with the size/length combination you require for a quote!
Many Sizes/Head Styles Available in Stainless Steel.
Finishes Available Include: Black Zinc, Green Zinc, Black Oxide…and More!

Product NumberThreadLengthDriveHeadTC TypeMaterial
TC02C050PP23SZR 2-561/2"PhillipsPan 23Steel Zinc RoHS
TC04C050PP23SZR4-401/2"PhillipsPan23Steel Zinc RoHS
TC06C050PP23SZR6-321/2"PhillipsPan23Steel Zinc RoHS
TC08C050PP23SZR8-321/2"PhillipsPan23Steel Zinc RoHS
TC10C050PP23SZR10-241/2"PhillipsPan23Steel Zinc RoHS
TC10F050PP23SZR10-321/2"PhillipsPan23Steel Zinc RoHS
TC12C050PP23SZR12-241/2"PhillipsPan23Steel Zinc RoHS
TC25C050PP23SZR1/4-201/2"PhillipsPan23Steel Zinc RoHS
TC04C100PP23SZR4-401"PhillipsPan23Steel Zinc RoHS
TC06C100PP23SZR6-321"PhillipsPan23Steel Zinc RoHS
TC08C100PP23SZR8-321"PhillipsPan23Steel Zinc RoHS
TC10C100PP23SZR10-241"PhillipsPan23Steel Zinc RoHS
TC10F100PP23SZR10-321"PhillipsPan23Steel Zinc RoHS
TC12C100PP23SZR12-241"PhillipsPan23Steel Zinc RoHS
TC25C100PP23SZR1/4-201"PhillipsPan23Steel Zinc RoHS

TC02C050TP23SZR 2-561/2"TorxPan23Steel Zinc RoHS
TC04C050TP23SZR4-401/2"TorxPan23Steel Zinc RoHS
TC06C050TP23SZR6-321/2"TorxPan23Steel Zinc RoHS
TC08C050TP23SZR8-321/2"TorxPan23Steel Zinc RoHS
TC10C050TP23SZR10-241/2"TorxPan23Steel Zinc RoHS
TC10F050TP23SZR10-321/2"TorxPan23Steel Zinc RoHS
TC12C050TP23SZR12-241/2"TorxPan23Steel Zinc RoHS
TC25C050TP23SZR1/4-201/2"TorxPan23Steel Zinc RoHS
TC04C100TP23SZR4-401"TorxPan23Steel Zinc RoHS
TC06C100TP23SZR6-321"TorxPan23Steel Zinc RoHS
TC08C100TP23SZR8-321"TorxPan23Steel Zinc RoHS
TC10C100TP23SZR10-241"TorxPan23Steel Zinc RoHS
TC10F100TP23SZR10-321"TorxPan23Steel Zinc RoHS
TC12C100TP23SZR12-241"TorxPan23Steel Zinc RoHS
TC25C100TP23SZR1/4-201"TorxPan23Steel Zinc RoHS

TC02C050PF23SZR 2-561/2"PhillipsFlat23Steel Zinc RoHS
TC04C050PF23SZR4-401/2"PhillipsFlat23Steel Zinc RoHS
TC06C050PF23SZR6-321/2"PhillipsFlat23Steel Zinc RoHS
TC08C050PF23SZR8-321/2"PhillipsFlat23Steel Zinc RoHS
TC10C050PF23SZR10-241/2"PhillipsFlat23Steel Zinc RoHS
TC10F050PF23SZR10-321/2"PhillipsFlat23Steel Zinc RoHS
TC12C050PF23SZR12-241/2"PhillipsFlat23Steel Zinc RoHS
TC25C050PF23SZR1/4-201/2"PhillipsFlat23Steel Zinc RoHS
TC04C100PF23SZR4-401"PhillipsFlat23Steel Zinc RoHS
TC06C100PF23SZR6-321"PhillipsFlat23Steel Zinc RoHS
TC08C100PF23SZR8-321"PhillipsFlat23Steel Zinc RoHS
TC10C100PF23SZR10-241"PhillipsFlat23Steel Zinc RoHS
TC10F100PF23SZR10-321"PhillipsFlat23Steel Zinc RoHS
TC12C100PF23SZR12-241"PhillipsFlat23Steel Zinc RoHS
TC25C100PF23SZR1/4-201"PhillipsFlat23Steel Zinc RoHS

TC02C050SHWH23SZR 2-561/2"SlottedHex Washer Head23Steel Zinc RoHS
TC04C050SHWH23SZR4-401/2"SlottedHex Washer Head23Steel Zinc RoHS
TC06C050SHWH23SZR6-321/2"SlottedHex Washer Head23Steel Zinc RoHS
TC08C050SHWH23SZR8-321/2"SlottedHex Washer Head23Steel Zinc RoHS
TC10C050SHWH23SZR10-241/2"SlottedHex Washer Head23Steel Zinc RoHS
TC10F050SHWH23SZR10-321/2"SlottedHex Washer Head23Steel Zinc RoHS
TC12C050SHWH23SZR12-241/2"SlottedHex Washer Head23Steel Zinc RoHS
TC25C050SHWH23SZR1/4-201/2"SlottedHex Washer Head23Steel Zinc RoHS
TC04C100SHWH23SZR4-401"SlottedHex Washer Head23Steel Zinc RoHS
TC06C100SHWH23SZR6-321"SlottedHex Washer Head23Steel Zinc RoHS
TC08C100SHWH23SZR8-321"SlottedHex Washer Head23Steel Zinc RoHS
TC10C100SHWH23SZR10-241"SlottedHex Washer Head23Steel Zinc RoHS
TC10F100SHWH23SZR10-321"SlottedHex Washer Head23Steel Zinc RoHS
TC12C100SHWH23SZR12-241"SlottedHex Washer Head23Steel Zinc RoHS
TC25C100SHWH23SZR1/4-201"SlottedHex Washer Head23Steel Zinc RoHS
