U-Nuts, Metric

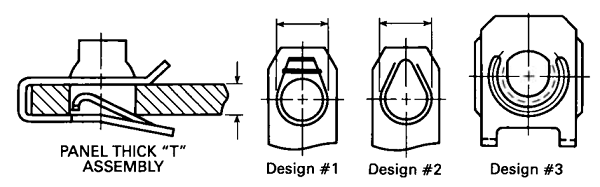

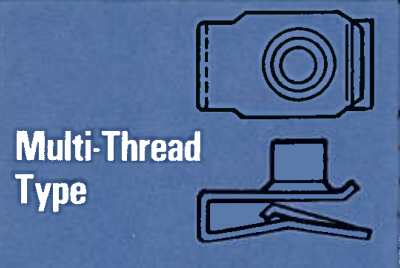

Basic Part Numbers Nom. Dia. Thread mm Pitch Leg Length mm Width mm Barrel Ht. Above Leg mm Panel Thickness Range "T" mm Material Thickness mm Tensile Strength Ultimate *KN Retention in Panel Minimum *N Lower Tab Design
LUGS040016 M4 0.7 17.3 12.5 5.6 0.5/2.4 0.65 10.1 10.4 2
LUGZ050015 M5 0.8 15.2 11.4 5.3 1.8/2.5 0.65 10.1 10.4 3
LUGS060023 M6 1.0 23.4 14.2 6.1 0.8/4.0 0.89 18.2 13.4 1
LUGS064730 M6 1.0 29.5 14.5 6.0 0.8/4.0 0.89 18.2 13.4 1
LUGS060030 M6 1.0 29.5 14.5 6.0 0.8/4.0 0.89 18.2 13.4 1
LUGS630023 M6.3 1.0 23.4 14.2 6.1 0.8/4.0 0.89 18.2 13.4 1
LUGS080025 M8 1.3 25.0 17.0 8.0 0.8/4.0 1.02 32.9 13.4 1
LUGS085725 M8 1.3 25.0 17.0 8.0 1.5/5.5 1.02 32.9 13.4 1
LUGS100033 M10 1.5 32.7 18.5 9.4 1.5/5.5 1.40 52.2 13.4 1

*N - Newtons = 9.8 Kgm  *Nm - Newton meters = 980 Kgm-Cm


Basic Part Numbers Nom. Dia. Thread mm Pitch Leg Length mm Width mm Barrel Ht. Above Leg mm Panel Thickness Range "T" mm Material Thickness mm Tensile Strength Ultimate *KN Retention in Panel Minimum *N
LPGS060023 6 1.0 23.4 14.2 6.1 0.80/4.00 0.89 18.16 13.4
LPGS630023 6 1.0 23.4 14.2 6.1 0.80/4.00 0.89 18.16 13.4
LPGS085725 8 1.25 24.9 17.0 8.0 1.5/5.5 1.02 32.94 13.4
LPGS080025 8 1.25 24.9 17.0 8.0 0.80/4.00 1.02 32.94 13.4
LPGS002132 8 1.25 24.9 17.0 8.0 1.3/4.00 0.99 32.94 13.4
LPGS060024 6 1.0 23.5 14.5 6.0 0.30/3.00 0.89 18.16 13.4

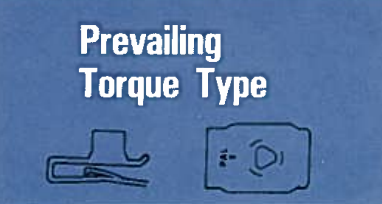

Prevailing Torque: max. on *NM is 3; fifth off *NM is 0.3

*N - Newtons = 9.8 Kgm  *Nm - Newton meters = 980 Kgm-Cm
