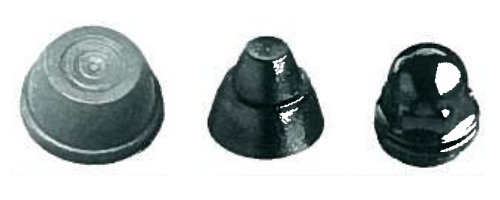

Plastic and Metal Caps, Metric

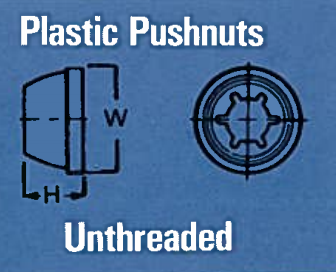

Basic Part Numbers Stud Rod or Wire Shaft Outside Dia. W mm Overall Height H Mm Shaft Min A mm Shaft Max Cap Penetration B mm Steel Thick mm Tooth Design Max Push-On Force *N Min Holding Strength *N
KPS004167 4 16.7 8.7 3.8 6.4 0.3 3 134 890
KPS008215 8 21.2 11.2 4.4 8.9 0.38 1 267 3115
KPS009215 9 21.2 11.2 4.4 8.9 0.38 1 334 3115
KPS016325 16 32.6 16.4 5.1 13.3 0.46 1 400 8900

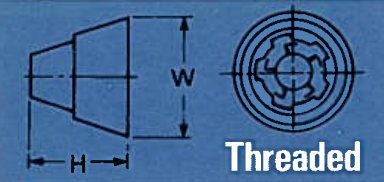

Basic Part Numbers Thread Dia. Outside Dia.-D mm Overall Height-H mm Bolt Min A mm Bolt Max Corp Penetration B mm Steel Thick. Mm Max Push-On Force *N Min Holding Strength *N
KPTZ080245 8 24.5 19.45 11.9 18 0.33 155 900
KTP080245 8 24.5 16.45 8.9 15 0.33 155 900

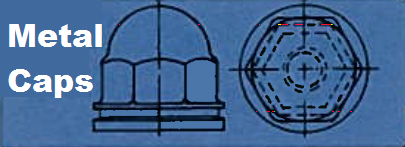

Metal Caps.png

Basic Part Numbers Thread Size mm Pitch mm Washer Dia. Mm Hex Size mm Overall Height Cap mm Nut mm
KMF040014 4 0.7 13.59/13.38 11 12.75 0.61 0.89

*N - Newtons = 9.8 Kgm  *Nm - Newton meters = 980 Kgm-Cm

Palnut metric fasteners

Plastic and Metal Caps
