3/16" Round Handle - Internal Thread

Round Metal Handles are utilized in many applications including furniture handles, cabinet handles, and even panel handles. Apex Fasteners provides round handles with internal threads in sizes to meet your specific needs. Round metal handles are available in aluminum, brass, steel and stainless steel with a broad range of finishes. Aluminum handles and steel handles are our most popular items.

Please note that certain finishes are not RoHS compliant. Please contact Apex Fasteners to insure RoHS compliance prior to ordering.

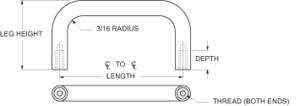

Basic Part Number Body Diameter Leg Height (+/- 1/32) C to C Length (+/- 1/32) Thread Depth Thread Size
HF1048-0.187-0440 0.187 0.625 1.500 1/4" 4-40
HF1049-0.187-0440 0.187 0.625 1.750 1/4" 4-40
HF1050-0.187-0440 0.187 0.625 2.000 1/4" 4-40
HF1051-0.187-0440 0.187 0.625 3.000 1/4" 4-40
HF1052-0.187-0440 0.187 0.625 4.000 1/4" 4-40
HF1053-0.187-0440 0.187 0.625 5.000 1/4" 4-40
HF1054-0.187-0440 0.187 0.750 1.000 1/4" 4-40
HF1055-0.187-0440 0.187 0.750 1.250 1/4" 4-40
HF1056-0.187-0440 0.187 0.750 1.500 1/4" 4-40
HF1057-0.187-0440 0.187 0.750 1.750 1/4" 4-40
HF1058-0.187-0440 0.187 0.750 2.000 1/4" 4-40
HF1059-0.187-0440 0.187 0.750 3.000 1/4" 4-40
HF1060-0.187-0440 0.187 0.750 4.000 1/4" 4-40
HF1061-0.187-0440 0.187 0.750 5.000 1/4" 4-40
HF1062-0.187-0440 0.187 0.875 1.000 1/4" 4-40
HF1063-0.187-0440 0.187 0.875 1.250 1/4" 4-40
HF1064-0.187-0440 0.187 0.875 1.500 1/4" 4-40
HF1065-0.187-0440 0.187 0.875 1.750 1/4" 4-40
HF1066-0.187-0440 0.187 0.875 2.000 1/4" 4-40
HF1067-0.187-0440 0.187 0.875 3.000 1/4" 4-40
HF1068-0.187-0440 0.187 0.875 4.000 1/4" 4-40
HF1069-0.187-0440 0.187 0.875 5.000 1/4" 4-40
HF1070-0.187-0440 0.187 1.000 1.000 1/4" 4-40
HF1071-0.187-0440 0.187 1.000 1.250 1/4" 4-40
HF1072-0.187-0440 0.187 1.000 1.500 1/4" 4-40
HF1073-0.187-0440 0.187 1.000 1.750 1/4" 4-40
HF1074-0.187-0440 0.187 1.000 2.000 1/4" 4-40
HF1075-0.187-0440 0.187 1.000 3.000 1/4" 4-40
HF1076-0.187-0440 0.187 1.000 4.000 1/4" 4-40
HF1077-0.187-0440 0.187 1.000 5.000 1/4" 4-40
HF1078-0.187-0440 0.187 1.125 1.000 1/4" 4-40
HF1079-0.187-0440 0.187 1.125 1.250 1/4" 4-40
HF1080-0.187-0440 0.187 1.125 1.500 1/4" 4-40
HF1081-0.187-0440 0.187 1.125 1.750 1/4" 4-40
HF1082-0.187-0440 0.187 1.125 2.000 1/4" 4-40
HF1083-0.187-0440 0.187 1.125 3.000 1/4" 4-40
HF1084-0.187-0440 0.187 1.125 4.000 1/4" 4-40
HF1085-0.187-0440 0.187 1.125 5.000 1/4" 4-40
HF1086-0.187-0440 0.187 1.250 1.000 1/4" 4-40
HF1087-0.187-0440 0.187 1.250 1.250 1/4" 4-40
HF1088-0.187-0440 0.187 1.250 1.500 1/4" 4-40
HF1089-0.187-0440 0.187 1.250 1.750 1/4" 4-40
HF1090-0.187-0440 0.187 1.250 2.000 1/4" 4-40
HF1091-0.187-0440 0.187 1.250 3.000 1/4" 4-40
HF1092-0.187-0440 0.187 1.250 4.000 1/4" 4-40
HF1093-0.187-0440 0.187 1.250 5.000 1/4" 4-40
HF1094-0.187-0440 0.187 1.500 1.000 1/4" 4-40
HF1095-0.187-0440 0.187 1.500 1.250 1/4" 4-40
HF1096-0.187-0440 0.187 1.500 1.500 1/4" 4-40
HF1097-0.187-0440 0.187 1.500 1.750 1/4" 4-40
HF1098-0.187-0440 0.187 1.500 2.000 1/4" 4-40
HF1099-0.187-0440 0.187 1.500 3.000 1/4" 4-40
HF1100-0.187-0440 0.187 1.500 4.000 1/4" 4-40
HF1101-0.187-0440 0.187 1.500 5.000 1/4" 4-40

Basic Part Number Body Diameter Leg Height (+/- 1/32) C to C Length (+/- 1/32) Thread Depth Thread Size
HF1048-0.187-0632 0.187 0.625 1.500 5/16"-3/8" 6-32
HF1049-0.187-0632 0.187 0.625 1.750 5/16"-3/8" 6-32
HF1050-0.187-0632 0.187 0.625 2.000 5/16"-3/8" 6-32
HF1051-0.187-0632 0.187 0.625 3.000 5/16"-3/8" 6-32
HF1052-0.187-0632 0.187 0.625 4.000 5/16"-3/8" 6-32
HF1053-0.187-0632 0.187 0.625 5.000 5/16"-3/8" 6-32
HF1054-0.187-0632 0.187 0.750 1.000 5/16"-3/8" 6-32
HF1055-0.187-0632 0.187 0.750 1.250 5/16"-3/8" 6-32
HF1056-0.187-0632 0.187 0.750 1.500 5/16"-3/8" 6-32
HF1057-0.187-0632 0.187 0.750 1.750 5/16"-3/8" 6-32
HF1058-0.187-0632 0.187 0.750 2.000 5/16"-3/8" 6-32
HF1059-0.187-0632 0.187 0.750 3.000 5/16"-3/8" 6-32
HF1060-0.187-0632 0.187 0.750 4.000 5/16"-3/8" 6-32
HF1061-0.187-0632 0.187 0.750 5.000 5/16"-3/8" 6-32
HF1062-0.187-0632 0.187 0.875 1.000 5/16"-3/8" 6-32
HF1063-0.187-0632 0.187 0.875 1.250 5/16"-3/8" 6-32
HF1064-0.187-0632 0.187 0.875 1.500 5/16"-3/8" 6-32
HF1065-0.187-0632 0.187 0.875 1.750 5/16"-3/8" 6-32
HF1066-0.187-0632 0.187 0.875 2.000 5/16"-3/8" 6-32
HF1067-0.187-0632 0.187 0.875 3.000 5/16"-3/8" 6-32
HF1068-0.187-0632 0.187 0.875 4.000 5/16"-3/8" 6-32
HF1069-0.187-0632 0.187 0.875 5.000 5/16"-3/8" 6-32
HF1070-0.187-0632 0.187 1.000 1.000 5/16"-3/8" 6-32
HF1071-0.187-0632 0.187 1.000 1.250 5/16"-3/8" 6-32
HF1072-0.187-0632 0.187 1.000 1.500 5/16"-3/8" 6-32
HF1073-0.187-0632 0.187 1.000 1.750 5/16"-3/8" 6-32
HF1074-0.187-0632 0.187 1.000 2.000 5/16"-3/8" 6-32
HF1075-0.187-0632 0.187 1.000 3.000 5/16"-3/8" 6-32
HF1076-0.187-0632 0.187 1.000 4.000 5/16"-3/8" 6-32
HF1077-0.187-0632 0.187 1.000 5.000 5/16"-3/8" 6-32
HF1078-0.187-0632 0.187 1.125 1.000 5/16"-3/8" 6-32
HF1079-0.187-0632 0.187 1.125 1.250 5/16"-3/8" 6-32
HF1080-0.187-0632 0.187 1.125 1.500 5/16"-3/8" 6-32
HF1081-0.187-0632 0.187 1.125 1.750 5/16"-3/8" 6-32
HF1082-0.187-0632 0.187 1.125 2.000 5/16"-3/8" 6-32
HF1083-0.187-0632 0.187 1.125 3.000 5/16"-3/8" 6-32
HF1084-0.187-0632 0.187 1.125 4.000 5/16"-3/8" 6-32
HF1085-0.187-0632 0.187 1.125 5.000 5/16"-3/8" 6-32
HF1086-0.187-0632 0.187 1.250 1.000 5/16"-3/8" 6-32
HF1087-0.187-0632 0.187 1.250 1.250 5/16"-3/8" 6-32
HF1088-0.187-0632 0.187 1.250 1.500 5/16"-3/8" 6-32
HF1089-0.187-0632 0.187 1.250 1.750 5/16"-3/8" 6-32
HF1090-0.187-0632 0.187 1.250 2.000 5/16"-3/8" 6-32
HF1091-0.187-0632 0.187 1.250 3.000 5/16"-3/8" 6-32
HF1092-0.187-0632 0.187 1.250 4.000 5/16"-3/8" 6-32
HF1093-0.187-0632 0.187 1.250 5.000 5/16"-3/8" 6-32
HF1094-0.187-0632 0.187 1.500 1.000 5/16"-3/8" 6-32
HF1095-0.187-0632 0.187 1.500 1.250 5/16"-3/8" 6-32
HF1096-0.187-0632 0.187 1.500 1.500 5/16"-3/8" 6-32
HF1097-0.187-0632 0.187 1.500 1.750 5/16"-3/8" 6-32
HF1098-0.187-0632 0.187 1.500 2.000 5/16"-3/8" 6-32
HF1099-0.187-0632 0.187 1.500 3.000 5/16"-3/8" 6-32
HF1100-0.187-0632 0.187 1.500 4.000 5/16"-3/8" 6-32
HF1101-0.187-0632 0.187 1.500 5.000 5/16"-3/8" 6-32

Round Metal Handles, Female Thread
Part Number Example:
(Basic Part Number-Material Code-Finish Code)
HF1063-0.187-0440-SS-01
3/16" Round Handle, 4-40 Internal Thread, 7/8" Ht x 1 1/4" Length, Stainless Steel, Passivated

Material
Code Description
AA Aluminum (RoHS)
BR Brass (RoHS)
SS Stainless Steel (RoHS)
ST Steel (RoHS)

Finish
Code Description
00 Plain - No Finish
01 Passivate MIL-F-14072-E300
02 Caustic Etch
03 Brass, Bright Dip
12 Anodize, Clear - Type II Sulphuric Hot Water Seal - MIL-A-8625C
14 Anodize, Black - MIL-A-8625C
21 Iridite, Clear -MIL-C-5541
22 Iridite, Gold #14 - MIL-C-5541
25 Clear Iridite Class 3 (RoHS) MIL-DTL-5541F
31 Cadmium, Clear Chromate - QQ-P-416, CL 2
32 Cadmium, Color Chromate - QQ-P-416, CL 2
33 Zinc, Black
34 Zinc, Clear Chromate - QQ-Z-325, Type II, CL 3
35 Zinc QQ-Z-325, Type I, CL 3
36 Zinc, Yellow Chromate - QQ-Z-325, Type II, CL 3
37 Zinc,Yellow Trivalent
38 Zinc, Black Trivalent
42 Electro Tin MIL-T-10727, Type I (Dull)
43 Electro Tin MIL-T-10727 C, Type I (Bright)
44 Electro Tin (Solder) MIL-F-14072 M230/M222
48 Copper / Nickel / Bright Tin
50 Black Oxide MIL-C-13924 Steel
51 Black Oxide MIL-F-495 Brass
52 Black Oxide MIL-C-13924 Stainless Steel
61 Nickel QQ-N-290 CL 1, Type VI KC
63 Nickel, Ductile
66 Nickle, Electroless
91 Silver QQ-S-365
111 Anodize, Dark Grey - Type 2
