Wire-Cable Holders


Wire/Cable Holders are designed to mount into 3/16 or 5mm hole diameters. Wire/Cable Holders can be used in a variety of panel thicknesses and materials. Sizes are available to handle wire bundle diameters from .375" to .500".

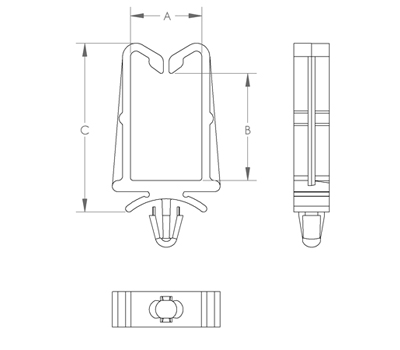

Product Number A B C Hole Dia. Panel Range
PMPMWHA095127 9.500 12.700 23.400 5.000 Variable
PMPMWHA095190 9.500 19.000 29.800 5.000 Variable
PMPMWHA127190 12.700 19.000 30.500 5.000 Variable
PMPMWHA127254 12.700 25.400 37.300 5.000 Variable
PMPWHA375050 0.375 0.500 0.922 0.187 Variable
PMPWHA375075 0.375 0.750 1.172 0.187 Variable
PMPWHA500075 0.500 0.750 1.219 0.187 Variable
PMPWHA500100 0.500 1.000 1.469 0.187 Variable
PMPWHB375050 0.375 0.500 0.922 0.187 0.030 - 0.093
PMPWHB375075 0.375 0.750 1.172 0.187 0.030 - 0.093
PMPWHB500075 0.500 0.750 1.200 0.187 0.030 - 0.093
PMPWHB500100 0.500 1.000 1.425 0.187 0.030 - 0.093
