Locking/Sealing Washers


Our lock washers are made of natural nylon 6/6. This washer's unique geometry creates an interference both on the OD of a hex nut, and on the ID on the shanks or thread of the screw. As the screw is tightened, the OD cold flows around the hex of a nut and the ID cold flows into the threads of the bolt or screw.

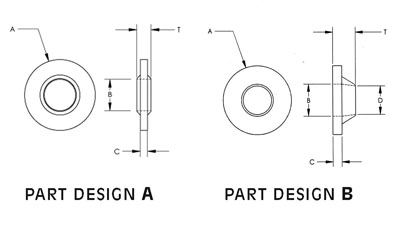

Product Number A T C B Screw Size Inch Screw Size Metric PART DESIGN D
PMPLSW030070070 7.000 1.400 0.700 3.100 #5 M3 A
PMPLSW060120160 12.000 4.000 1.600 6.100 N/A M6 A
PMPLSW080158210 15.800 4.600 2.100 8.100 5/16 M8 A
PMPLSW140252250 25.200 5.500 2.500 14.000 9/16 M14 A
PMPLSW040090125 9.000 2.800 2.800 4.150 #8 M4 A
PMPLSW100196210 19.600 5.300 2.100 10.000 3/8" M10 A
PMPLSW132190250 19.000 4.500 2.500 13.200 *R 1/4" N/A B 12.200
PMPLSW048100150 10.000 3.200 1.500 4.800 N/A M4.8 B 4.140* (ref.)
PMPLSW080160160 16.000 3.100 1.600 8.200 N/A M8 B 7.010* (ref.)
PMPLSW060125150 12.500 2.800 1.500 6.300 N/A M6 B 4.950* (ref.)
PMPLSW103150200 15.000 4.000 2.000 10.300 *R 1/8" N/A B 9.450* (ref.)
