Square Head Nylon Grommet Nut

Open Poly Grommet Nuts provide a low cost, positive connection of thin gauge materials while they eliminate cross threading. The specially designed locks snap into a pre-punched square hole. As the self-threading sheet metal screw is tightened, the Poly Grommet expands and securely locks the screw and assembled parts in place. The Grommet will provide a corrosion and vibration resistant connection and can be used to insulate areas of an assembly from electrical and thermal transfer. Some of the more common sizes that we have initially tooled are shown below.

Because of our unique tooling approach, we can vary this design over a wide range. Request the size you need. Poly Grommets are molded in Nylon 6/6 and can be dyed or molded in various colors. Different plastic materials can be substituted. Naturally, changes in our standard product will involve additional costs. Let us know what you need.

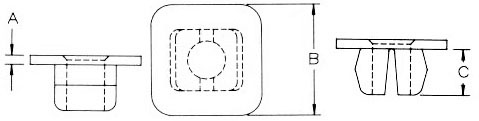

Product Number	Hole Size	Thickness Range	Screw	Head Size "B"	Height "A"	Length "C"
PMSHNGN00001	.275 / .290	.031 / .125	8 - 10	0.375	0.031	0.320
PMSHNGN00002	.275 / .290	.031 / .125	8 - 10	0.375	0.062	0.320
PMSHNGN00003	.275 / .290	.031 / .125	8 - 10	0.375	0.125	0.320
PMSHNGN00004	.275 / .290	.031 / .125	8 - 10	0.375	0.250	0.320
PMSHNGN00005	0.375 - 0.375	.031 / .125	1/4	0.625	1.062	0.281
PMSHNGN00006	.250 / .260	.031 / .115	6.000	0.435	0.094	0.220
PMSHNGN00007	.270 / .270	.062 / .275	6.000	.375 / .500	0.031	0.435
PMSHNGN00912	.225 / .255	.031 / .125	8.000	0.375	0.187	0.300
PMSHNGN00913	0.250 - 0.250	.031/.060	8 - 10	0.406	0.030	0.281
PMSHNGN00915	.245 / .255	.031 / .125	6 - 8	0.375	0.031	0.281
PMSHNGN01000	.250 / .255	.110 / .125	6.000	0.375	0.031	0.265
PMSHNGN01012	.173 / .178	.031 / .078	4.000	0.218	0.250	0.218
PMSHNGN01014	.250 / .270	.062 / .155	6.000	0.375	0.032	0.312
PMSHNGN01016	0.285 - 0.295	.078 / .175	8.000	0.380	0.045	0.340
PMSHNGN01020	.275 / .280	.040 / .045	8 - 10	0.370	0.032	0.330
PMSHNGN01122	.350 / .355	.218 / .230	8 - 10	0.475	0.064	0.421
PMSHNGN01125	.370 / .390	.064 / .187	10.000	0.609	0.085	0.290
PMSHNGN01126	.305 / .315	.031 / .175	8.000	0.470	0.060	0.300
PMSHNGN01130	.370 / .375	.031 / .100	12.000	0.620	0.080	0.275
PMSHNGN01135	.173 / .178	.031 / .078	4.000	0.218	0.050	0.218
PMSHNGN01145	.270 / .310	.031 / .170	8.000	0.405	0.062	0.312
PMSHNGN01150	.310 / .310	.031 / .170	10.000	0.465	0.062	0.295
PMSHNGN01155	.245 / .250	.047 / .095	2.000	0.375	0.032	0.240
PMSHNGN01160	.335 / .340	.062 / .125	8.000	0.512	0.075	0.315
PMSHNGN01165	.270 / .270	.062 / .125	6.000	0.390	0.050	0.275
PMSHNGN01170	.275 / .285	.031 / .125	4.000	0.375	0.050	0.218
PMSHNGN01171	.200 / .270	.032 / .156	6.000	.312 / .437	0.035	0.312
PMSHNGN01175	.275 / .280	.062 / .120	6.000	0.390	0.055	0.281
PMSHNGN01176	.260 / .270	.093 / .187	6.000	0.410	0.040	0.310
PMSHNGN01178	0.275 - 0.275	.047 / .180	8.000	0.375	0.032	0.327
PMSHNGN01179	0.365	.062 / .120	1/4	5/8	0.080	0.281
PMSHNGN01180	.370 / .375	.062 / .120	1/4	0.625	0.080	0.281
PMSHNGN01185	.320 / .335	.032 / .234	10.000	0.470	0.055	0.420
PMSHNGN01190	.335 / .345	.062 / .171	10.000	0.468	0.095	0.400
PMSHNGN01195	.350 / .365	.032 / .095	10.000	0.493	0.094	0.295
PMSHNGN01200	.250 / .260	.062 / .125	6.000	0.375	0.140	0.265
PMSHNGN00914	.270 / .275	.031 / .109	6.000	0.375	0.305	0.281
PMSHNGN00015	.370 / .380	.031 / .156	10.000	5/8	0.078	0.325
PMSHNGN01182	.370 / .375	.125 / .250	1/4	5/8	0.080	0.406
PMSHNGN01177	0.275	0.187 - 0.250	4.000	0.375	0.035	0.390
