Snap Clips


A combination of Celcon Acetal material, and a resilient body design, give these parts a positive "snap" and a more definite grip when assembled into place. Designed for other hole sizes from 1/8" to 1/4" and panel thickness from 1/32" to 3/16".

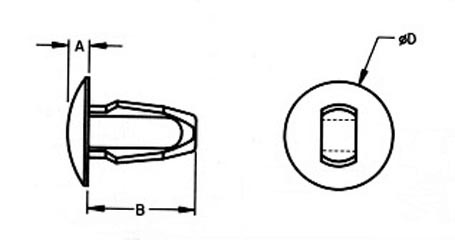

Product Number A Head Dia. D B Hole Size Panel Thickness
PMSC1250032 0.060 0.250 0.250 0.125 0.032
PMSC1250062 0.060 0.250 0.281 0.125 0.062
PMSC1250093 0.060 0.250 0.312 0.125 0.093
PMSC1250125 0.060 0.250 0.343 0.125 0.125
PMSC1560032 0.060 0.312 0.281 0.156 0.032
PMSC1560062 0.060 0.312 0.312 0.156 0.062
PMSC1560093 0.060 0.312 0.343 0.156 0.093
PMSC1560125 0.060 0.312 0.390 0.156 0.125
PMSC1560156 0.060 0.312 0.406 0.156 0.156
PMSC1870032 0.060 0.312 0.312 0.187 0.032
PMSC1870062 0.060 0.312 0.343 0.187 0.062
PMSC1870093 0.060 0.312 0.375 0.187 0.093
PMSC1870125 0.060 0.312 0.406 0.187 0.125
PMSC1870156 0.060 0.312 0.437 0.187 0.156
PMSC1870187 0.060 0.312 0.468 0.187 0.187
PMSC2190032 0.060 0.343 0.390 0.219 0.032
PMSC2190062 0.060 0.343 0.421 0.219 0.062
PMSC2190093 0.060 0.343 0.453 0.219 0.093
PMSC2190125 0.060 0.343 0.484 0.219 0.125
PMSC2190156 0.060 0.343 0.515 0.219 0.156
PMSC2190187 0.060 0.343 0.546 0.219 0.187
PMSC2500032 0.060 0.500 0.406 0.250 0.032
PMSC2500062 0.060 0.500 0.421 0.250 0.062
PMSC2500093 0.060 0.500 0.453 0.250 0.093
PMSC2500125 0.060 0.500 0.484 0.250 0.125
PMSC2500156 0.060 0.500 0.515 0.250 0.156
PMSC2500187 0.060 0.500 0.546 0.250 0.187
