Round Head Nylon Grommet Nuts


Open Poly Grommet Nuts provide a low cost, positive connection of thin gauge materials while they eliminate cross threading. The specially designed locks snap into a pre-punched hole. As the self-threading sheet metal screw is tightened, the Poly Grommet expands and securely locks the screw and assembled parts in place. The Grommet will provide a corrosion and vibration resistant connection and can be used to insulate areas of an assembly from electrical and thermal transfer. Some of the more common sizes that we have initially tooled are shown below. Because of our unique tooling approach, we can vary this design over a wide range. Request the size you need. Poly Grommets are molded in Nylon 6/6 and can be dyed or molded in various colors. Different plastic materials can be substituted. Naturally, changes in our standard product will involve additional costs. Let us know what you need.

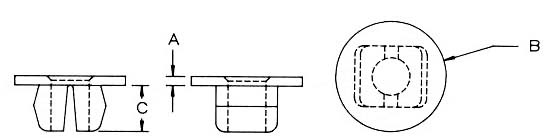

Product Number Hole Size Thickness Range Screw Head Size "B" Height "A" Length "C"
PMRHNGN01143 .310 / .310 .031 / .160 10.000 0.500 0.500 0.177
PMRHNGN00008 .267 / .272 .031 / .109 8 or 10 0.562 0.562 0.281
PMRHNGN00009 .270 / .280 .062 / .165 6.000 0.375 0.093 0.300
PMRHNGN00010 .275 / .290 .031 / .125 8 - 10 0.500 0.031 0.320
PMRHNGN00011 0.275 - 0.290 .031 / .125 8 - 10 0.500 0.062 0.320
PMRHNGN00012 .271 / .290 .031 / .125 8 - 10 0.500 0.125 0.320
PMRHNGN00013 .275 / .290 .031 / .125 8 - 10 0.500 0.250 0.320
PMRHNGN00038 .275 / .290 .031 / .156 8.000 0.500 0.375 0.320
PMRHNGN00072 .275 / .290 .031 / .156 8 - 10 0.500 0.708 0.315
PMRHNGN00073 .280 / .285 .032 / .150 6.000 0.500 0.719 0.344
PMRHNGN00100 .275 / .290 .031 / .156 8 - 10 0.437 0.032 0.325
PMRHNGN00818 .275 / .290 .031 / .109 8 - 10 0.547 1.062 0.281
PMRHNGN00910 .281 / .286 .031 / .109 8 - 10 0.492 0.693 0.281
PMRHNGN01121 .350 / .355 .032 / .125 12.000 0.534 0.130 0.281
PMRHNGN01124 .350 - .355 .032 -.125 10.000 0.562 0.250 0.320
PMRHNGN01140 .310 / .310 .031 / .160 10.000 0.500 0.035 0.292
PMRHNGN02200 .425 / .429 .031 / .110 0.312 0.740 0.190 0.312
PMRHNGN02300 .415 / .430 .032 / .135 0.312 0.750 0.062 0.310
PMRHNGN02400 .325 / .330 .031 / .156 10.000 0.565 0.062 0.320
PMRHNGN02500 0.275 .062 / .170 8.000 0.495 0.312 0.325
PMRHNGN02700 0.415 - 0.430 0.071 - 0.250 0.312 0.750 0.062 0.430
PMRHNGN00016 0.275 - 0.285 0.031 - 0.156 #8-10 0.500 0.098 0.325
