Metric Nylon Hex Nuts - DIN 34814

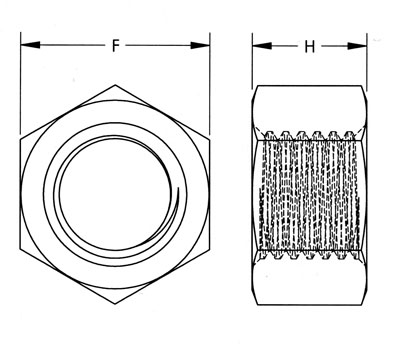

Product Number Description F H
PMPNHNDM030050 M3 X 0.5MM 5.320 - 5.500 2.150 - 2.400
PMPNHNDM040070 M4 X 0.7MM 6.780 - 7.000 2.900 - 3.200
PMPNHNDM050080 M5 X 0.8MM 7.780 - 8.000 4.400 - 4.700
PMPNHNDM060100 M6 X 1.0MM 9.780 - 10.000 4.900 - 5.200
PMPNHNDM080125 M8 X 1.25MM 12.730 - 13.000 6.440 - 6.800
PMPNHNDM100150 M10 X 1.5MM 15.730 - 16.000 8.039 - 8.400
PMPNHNDM160200 M16 X 2MM 23.670 - 24.000 14.100 - 14.800
