Hex Flange Nut


Nylon Hex Flange Nuts can be used where additional contact area is required. Eliminates the use of a washer in some applications.

Stocked in Nylon 6/6 UL 94V2

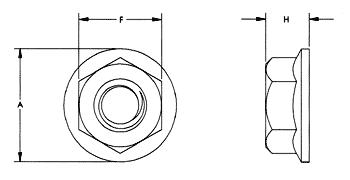

Product Number Description A F H
PMPHFN01032 1032 Hex Flange Nut 0.492 0.364 0.208
PMPHFN25020 1/4-20 Hex Flange Nut 0.582 0.428 0.226
PMPHFN25028 1/4-28 Hex Flange Nut 0.582 0.428 0.226
PMPHFN62511 5/8-11 Hex Flange Nut 1.265 0.930 0.557
