Nylon Premium Hose Clamps


Patented Interlocking Design Eliminates Leak Path

Our Premium Nylon Hose Clamps provide a superior seal on hose or tubing through their Patented, interlocking design by eliminating the leak path created by the overlapping ring design hose clamps. As interlocking grooves are ratcheted together , the sealing diameter of the fastener is aligned in parallel, creating a uniform clamping surface. Clamps may be removed by separating the clamping halves in a perpendicular direction at the seal.
-APPLIANCE- -ELECTRICAL/ELECTRONIC-
Dishwashers, laundry, refrigerators, food preparation equipment. Positioning and placement of components and wiring.
-R.V./BOATING- -AUTOMOTIVE-
Plumbing and Accessories Underhood applications, Heat-Stabilized material is available, call for details.

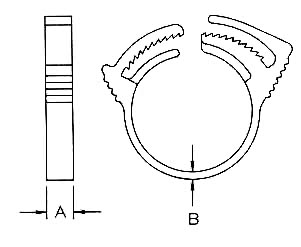

Product Number Description A B Min. Max.
PMPHC0250 1/4" Premium Hose Clamp 0.219 0.047 0.235 - 0.260 0.290
PMPHC0312 5/16" Premium Hose Clamp 0.219 0.062 0.300 0.350
PMPHC0344 11/32" Premium Hose Clamp 0.219 0.062 0.360 0.390
PMPHC0406 13/32" Premium Hose Clamp 0.250 0.062 0.410 0.468
PMPHC0468 15/32" Premium Hose Clamp 0.219 0.062 0.475 0.536
PMPHC0531 17/32" Premium Hose Clamp 0.250 0.062 0.538 0.608
PMPHC0593 19/32" Premium Hose Clamp 0.250 0.062 0.597 0.680
PMPHC0672 43/64" Premium Hose Clamp 0.219 0.062 0.670 0.776
PMPHC0750 3/4" Premium Hose Clamp 0.219 0.062 0.720 0.825
PMPHC0813 13/16" Premium Hose Clamp 0.216 1/16 0.750 0.875
PMPHC0875 7/8" Premium Hose Clamp 0.219 0.062 0.840 - 0.940 0.975
PMPHC0953 61/64" Premium Hose Clamp 0.250 0.062 0.885 1.025
PMPHC1031 1-1/32" Premium Hose Clamp 0.312 0.062 1.031 1.187
PMPHC1250 1-1/4" Premium Hose Clamp 0.312 0.062 1.250 1.425
PMPHC1406 1-13/32" Premium Hose Clamp 0.344 0.062 1.406 1.610
PMPHC1593 1-19/32" Premium Hose Clamp 0.344 0.062 1.593 1.812
PMPHC1687 1-11/16" Premium Hose Clamp 0.344 0.062 1.790 2.110
PMPHC1875 1-7/8" Premium Hose Clamp 0.406 0.062 1.870 2.125
PMPHC2125 2-1/8" Premium Hose Clamp 0.406 0.062 2.120 2.390
