Two-Piece Nylon Fastener for use with Edge Connector Assembly

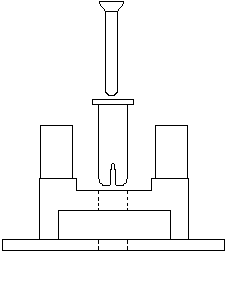

Body Item "A" is inserted through the connector and through the chassis. Pin Item "B" then is pushed or tapped into the body to secure the connector to the chassis. The head design of the pin permits easy removal,and then the connector can be easily replaced.

Product Number Description
PMPTI001
 Transistor Insulator
PMPTI002
 Transistor Insulator

Product Number Description C D A B
PMPTPF0001A 2 Pc. Edge Connector Body 0.109 0.305 --
 --
PMPTPF0001B 2 Pc. Edge Connector Pin --
--
0.069 0.330
PMPTPF0002A 2 Pc. Edge Connector Body 0.110 0.350 --
--
PMPTPF0002B 2 Pc. Edge Connector Pin --
--
0.069 0.360
PMPTPF0003A 2 Pc. Edge Connector Body 0.110 0.480  -- --
PMPTPF0003B 2 Pc. Edge Connector Pin --
--
0.069 0.455
PMPTPF0004A 2 Pc. Edge Connector Body 0.096 0.340 --
--
PMPTPF0004B 2 Pc. Edge Connector Pin --
--
0.062 0.340
