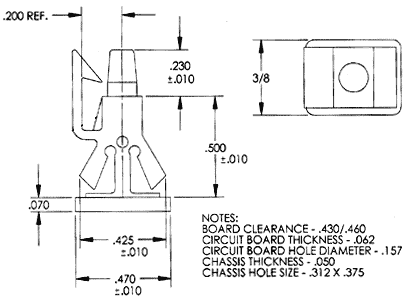

PC Board Fastener

Heavy duty nylon 6/6 support snaps into P.C. board from the bottom. Locking arm clips to the side of the pc board making for easy removal and replacement of pc boards. Support does not rotate in chassis or positioning holes. Board clearance may vary depending on chassis thickness. Parts are molded black in nylon and available in natural nylon. When ordering in natural, use "N" as a suffix.

Product Number Description
PMPPCBF010 PC Board Fastener



Product 21/39
