Nylon PC Board Card Guides


Our Printed Circuit board Support Guides are an economical and fast solution to mount P.C. Boards. Card insertion is simple and fast. The smooth positive channel guides the P.C. Board and firmly supports and protects the board. Guides are molded of tough, electrically insulating nylon 6/6 and are designed to snap into pre-punched holes in the chassis. We have available the seven most popular sizes.

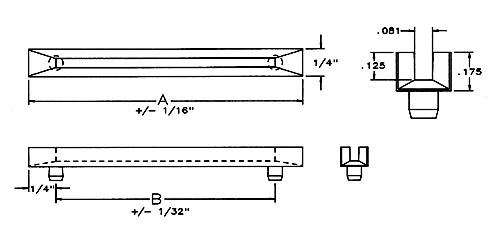

The Printed Circuit Board Card Guide is designed to fit a .125" + .003" - .001" front diameter hole and a .120" +/- .005" x .218" slot rear hole.

Product Number Description A B
PMPNPBCG00250WS 2 1/2" Guide w/ Split Legs 2.500 2.000
PMPNPBCG00300WS 3" Card Guide w/ Split Legs 3.000 2.500
PMPNPBCG00400WS 4" Card Guide w/ Split Legs 4.000 3.500
PMPNPBCG00450WS 4 1/2" Card Guide w/ Split Legs 4.500 4.000
PMPNPBCG00500WS 5" Card Guide w/ Split Legs 5.000 4.500
PMPNPBCG00600WS 6" Card Guide w/ Split Legs 6.000 5.500
PMPNPBCG00550WS 5 1/2" Card Guide w/ Split Legs 5.500 5.000
PMPNPBCG00250 2 1/2" Guide 2.500 2.000
PMPNPBCG00300 3" Guide 3.000 2.500
PMPNPBCG00350 3 1/2" Guide 3.500 3.000
PMPNPBCG00400 4" Guide 4.000 3.500
PMPNPBCG00450 4 1/2" Guide 4.500 4.000
PMPNPBCG00500 5" Guide 5.000 4.500
PMPNPBCG00550 5 1/2" Guide 5.500 5.000
PMPNPBCG00600 6" Guide 6.000 5.500
