Molded Plastic Dowels


Uses include dowel pins, stop pins, insulating spacers, switch actuators, and keys. Natural color acetal plastic is standard, though they may be molded of other materials. Other lengths are available.

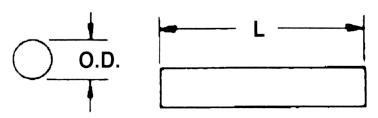

Product Number O.D. Length
PMPMPD00470125 0.047 0.125
PMPMPD00470250 0.047 0.250
PMPMPD00470375 0.047 0.375
PMPMPD00470500 0.047 0.500
PMPMPD00620125 0.062 0.125
PMPMPD00620250 0.062 0.250
PMPMPD00620375 0.062 0.375
PMPMPD00620500 0.062 0.500
PMPMPD00930125 0.093 0.125
PMPMPD00930187 0.093 0.187
PMPMPD00930250 0.093 0.250
PMPMPD00930312 0.093 0.312
PMPMPD00930375 0.093 0.375
PMPMPD00930500 0.093 0.500
PMPMPD01221125 0.122 1.125
PMPMPD01250125 0.125 0.125
PMPMPD01250187 0.125 0.187
PMPMPD01250250 0.125 0.250
PMPMPD01250375 0.125 0.375
PMPMPD01250500 0.125 0.500
PMPMPD01870125 0.187 0.125
PMPMPD01870250 0.187 0.250
PMPMPD01870375 0.187 0.375
PMPMPD01870500 0.187 0.500
PMPMPD01870625 0.187 0.625
PMPMPD01870750 0.187 0.750
PMPMPD02100500 0.210 0.500
PMPMPD02451250 0.245 1.250
PMPMPD02500125 0.250 0.125
PMPMPD02500239 0.250 0.235
PMPMPD02500250 0.250 0.250
PMPMPD02500375 0.250 0.375
PMPMPD02500500 0.250 0.500
PMPMPD02500750 0.250 0.750
PMPMPD03120125 0.312 0.125
PMPMPD03120250 0.312 0.250
PMPMPD03120375 0.312 0.375
PMPMPD03120500 0.312 0.500
PMPMPD03120625 0.312 0.625
PMPMPD03120750 0.312 0.750
PMPMPD04370250 0.437 0.250
