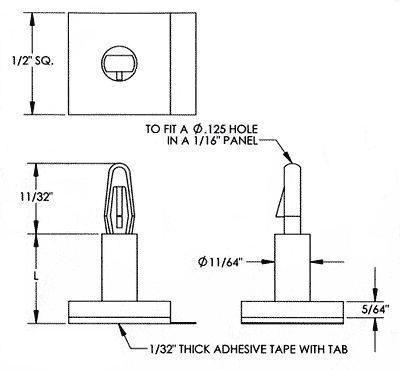

Mini Locking P.C.B. Support


Our Adhesive Backed Mini Locking P.C.B. Supports are molded in natural colored Nylon 6/6 material. Ideal for smaller sized circuit boards. Double adhesive foam tape has a release tab for easy removal of backing. Available in 8 board spacings from 3/16" to 5/8".

Product Number Description L
PMPMLPS0187 3/16" Mini Locking PCB Support 0.187
PMPMLPS0250 1/4" Mini Locking PCB Support 0.250
PMPMLPS0312 5/16" Mini Locking PCB Support 0.312
PMPMLPS0375 3/8" Mini Locking PCB Support 0.375
PMPMLPS0437 7/16" Mini Locking PCB Support 0.437
PMPMLPS0500 1/2" Mini Locking PCB Support 0.500
PMPMLPS0562 9/16" Mini Locking PCB Support 0.562
PMPMLPS0625 5/8" Mini Locking PCB Support 0.625
