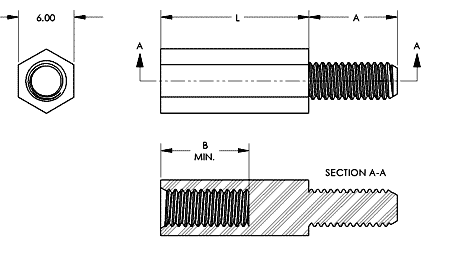

Metric Male Females


Product Number OD A B L Thread
PMPMFM30006 6.000 4.760 4.000 6.000 M3 x 0.5
PMPMFM30008 6.000 4.760 4.760 8.000 M3 x 0.5
PMPMFM30010 6.000 4.760 4.760 10.000 M3 x 0.5
PMPMFM30011 6.000 4.760 4.760 11.000 M3 x 0.5
PMPMFM30012 6.000 4.760 4.760 12.000 M3 x 0.5
PMPMFM30013 6.000 4.760 4.760 13.000 M3 x 0.5
PMPMFM30014 6.000 4.760 4.760 14.000 M3 x 0.5
PMPMFM30016 6.000 4.760 4.760 16.000 M3 x 0.5
PMPMFM30022 6.000 4.760 4.760 22.000 M3 x 0.5
PMPMFM30025 6.000 4.760 4.760 25.000 M3 x 0.5
PMPMFM30019 6.000 4.760 4.760 19.000 M3 x 0.5
PMPMFM30020 6.000 4.760 4.760 20.000 M3 x 0.5
PMPMFM35008 6.000 6.350 6.000 8.000 M3.5 x 0.6
PMPMFM35010 6.000 6.350 6.350 10.000 M3.5 x 0.6
PMPMFM35011 6.000 6.350 6.350 11.000 M3.5 x 0.6
PMPMFM35012 6.000 6.350 6.350 12.000 M3.5 x 0.6
PMPMFM35013 6.000 6.350 6.350 13.000 M3.5 x 0.6
PMPMFM35014 6.000 6.350 6.350 14.000 M3.5 x 0.6
PMPMFM35016 6.000 6.350 6.350 16.000 M3.5 x 0.6
PMPMFM35019 6.000 6.350 6.350 19.000 M3.5 x 0.6
PMPMFM35020 6.000 6.350 6.350 20.000 M3.5 x 0.6
PMPMFM35022 6.000 6.350 6.350 22.000 M3.5 x 0.6
PMPMFM35025 6.000 6.350 6.350 25.000 M3.5 x 0.6
PMPMFM40011 6.000 9.530 9.000 11.000 M4 x 0.7
PMPMFM40012 6.000 9.530 9.530 12.000 M4 x 0.7
PMPMFM40013 6.000 9.530 9.530 13.000 M4 x 0.7
PMPMFM40014 6.000 9.530 9.530 14.000 M4 x 0.7
PMPMFM40015 6.000 9.530 9.530 15.000 M4 x 0.7
PMPMFM40016 6.000 9.530 9.530 16.000 M4 x 0.7
PMPMFM40018 6.000 9.530 9.530 18.000 M4 x 0.7
PMPMFM40019 6.000 9.530 9.530 19.000 M4 x 0.7
PMPMFM40020 6.000 9.530 9.530 20.000 M4 x 0.7
PMPMFM40022 6.000 9.530 9.530 22.000 M4 x 0.7
PMPMFM40025 6.000 9.530 9.530 25.000 M4 x 0.7
PMPMFM40010 6.000 9.530 8.500 10.000 M4 x 0.7
