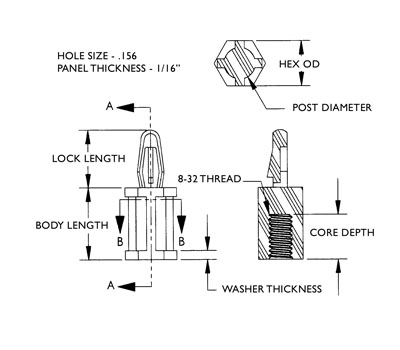

Female Circuit Board Post "Threaded 8-32"


Product Number Body Length Hex OD Washer Thickness Lock Length Post Diameter Core Depth Thread Size Hole Size Panel Thickness
PMPFCBP0800250 0.250 0.312 0.062 0.400* (ref.) 0.218 0.312 - 0.203 8-32 0.156 0.062
PMPFCBP0800375 0.375 0.312 0.062 0.400* (ref.) 0.218 0.312 - 0.203 8-32 0.156 0.062
PMPFCBP0800500 0.500 0.312 0.062 0.400* (ref.) 0.218 0.312 - 0.203 8-32 0.156 0.062
PMPFCBP0800625 0.625 0.312 0.062 0.400* (ref.) 0.218 0.312 - 0.203 8-32 0.156 0.062
PMPFCBP0800750 0.750 0.312 0.062 0.400* (ref.) 0.218 0.312 - 0.203 8-32 0.156 0.062
PMPFCBP0800875 0.875 0.312 0.062 0.400* (ref.) 0.218 0.312 - 0.203 8-32 0.156 0.062
PMPFCBP0801000 1.000 0.312 0.062 0.400* (ref.) 0.218 0.312 - 0.203 8-32 0.156 0.062
PMPFCBP0801125 1.125 0.312 0.062 0.400* (ref.) 0.218 0.312 - 0.203 8-32 0.156 0.062
PMPFCBP0801250 1.250 0.312 0.062 0.400* (ref.) 0.218 0.312 - 0.203 8-32 0.156 0.062
