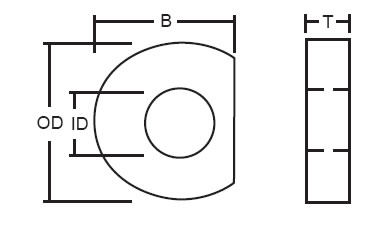

Outside D-Shape Washers


All Measurements in Inches.

Basic Part Number ID OD Thickness B
WODW.089.230.016.168 0.089 0.230 0.016 0.168
WODW.092.187.016.166 0.092 0.187 0.016 0.166
WODW.092.218.016.187 0.092 0.218 0.016 0.187
WODW.093.279.025.244 0.093 0.279 0.025 0.244
WODW.094.250.020.200 0.094 0.250 0.020 0.200
WODW.097.218.025.194 0.097 0.218 0.025 0.194
WODW.104.267.016.235 0.104 0.267 0.016 0.235
WODW.116.562.031.521 0.116 0.562 0.031 0.521
WODW.123.250.018.225 0.123 0.250 0.018 0.225
WODW.149.375.016.300 0.149 0.375 0.016 0.300
WODW.155.375.020.343 0.155 0.375 0.020 0.343
WODW.157.375.031.300 0.157 0.375 0.031 0.300
WODW.157.375.031.313 0.157 0.375 0.031 0.313
WODW.160.624.031.539 0.160 0.624 0.031 0.539
WODW.160.999.093.805 0.160 0.999 0.093 0.805
WODW.166.375.048.300 0.166 0.375 0.048 0.300
WODW.177.375.015.337 0.177 0.375 0.015 0.337
WODW.187.693.016.640 0.187 0.693 0.016 0.640
WODW.194.323.040.294 0.194 0.323 0.040 0.294
WODW.203.406.031.360 0.203 0.406 0.031 0.360
WODW.203.438.025.382 0.203 0.438 0.025 0.382
WODW.220.375.020.343 0.220 0.375 0.020 0.343
WODW.257.483.030.422 0.257 0.483 0.030 0.422
WODW.265.550.031.505 0.265 0.550 0.031 0.505
WODW.268.500.032.320 0.268 0.500 0.032 0.320
WODW.270.520.016.450 0.270 0.520 0.016 0.450
WODW.300.750.031.595 0.300 0.750 0.031 0.595
WODW.312.750.062.687 0.312 0.750 0.062 0.687
WODW.3121.000.125.843 0.312 1.000 0.125 0.843
WODW.3131.249.0601.145 0.313 1.249 0.060 1.145
WODW.316.750.062.655 0.316 0.750 0.062 0.655
WODW.328.686.125.624 0.328 0.686 0.125 0.624
WODW.340.620.062.560 0.340 0.620 0.062 0.560
WODW.3751.000.031.887 0.375 1.000 0.031 0.887
WODW.377.875.062.807 0.377 0.875 0.062 0.807
WODW.3911.625.0611.312 0.391 1.625 0.061 1.312
WODW.437.999.060.843 0.437 0.999 0.060 0.843
WODW.5001.000.093.870 0.500 1.000 0.093 0.870
WODW.5001.000.109.843 0.500 1.000 0.109 0.843
WODW.5621.370.1001.070 0.562 1.370 0.100 1.070
WODW.5781.062.063.908 0.578 1.062 0.063 0.908
WODW.6561.500.0301.220 0.656 1.500 0.030 1.220
WODW.6871.500.0781.000 0.687 1.500 0.078 1.250
WODW.6901.500.1601.250 0.690 1.500 0.160 1.250
WODW.8121.250.1091.125 0.812 1.250 0.109 1.125
WODW.9402.250.1601.937 0.940 2.250 0.160 1.937
