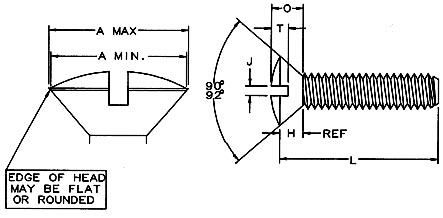

Metric Slotted Oval Machine Screw


All Dimensions are in Millimeters

Product Number Thread Size A H O J T Length
PMSOMSM020040004 M2 X 0.40 3.5 - 4.4 1.2 Max.* (ref.) 1.7 Max. 0.5 - 0.7 0.8 - 1.0 4
PMSOMSM020040005 M2 X 0.40 3.5 - 4.4 1.2 Max.* (ref.) 1.7 Max. 0.5 - 0.7 0.8 - 1.0 5
PMSOMSM020040006 M2 X 0.40 3.5 - 4.4 1.2 Max.* (ref.) 1.7 Max. 0.5 - 0.7 0.8 - 1.0 6
PMSOMSM020040008 M2 X 0.40 3.5 - 4.4 1.2 Max.* (ref.) 1.7 Max. 0.5 - 0.7 0.8 - 1.0 8
PMSOMSM020040010 M2 X 0.40 3.5 - 4.4 1.2 Max.* (ref.) 1.7 Max. 0.5 - 0.7 0.8 - 1.0 10
PMSOMSM020040011 M2 X 0.40 3.5 - 4.4 1.2 Max.* (ref.) 1.7 Max. 0.5 - 0.7 0.8 - 1.0 11
PMSOMSM020040012 M2 X 0.40 3.5 - 4.4 1.2 Max.* (ref.) 1.7 Max. 0.5 - 0.7 0.8 - 1.0 12
PMSOMSM020040016 M2 X 0.40 3.5 - 4.4 1.2 Max.* (ref.) 1.7 Max. 0.5 - 0.7 0.8 - 1.0 16
PMSOMSM020040025 M2 X 0.40 3.5 - 4.4 1.2 Max.* (ref.) 1.7 Max. 0.5 - 0.7 0.8 - 1.0 25
PMSOMSM025045004 M2.5 X 0.45 4.4 - 5.5 1.5 Max.* (ref.) 2.1 Max. 0.6 - 0.8 1.0 - 1.2 4
PMSOMSM025045005 M2.5 X 0.45 4.4 - 5.5 1.5 Max.* (ref.) 2.1 Max. 0.6 - 0.8 1.0 - 1.2 5
PMSOMSM025045006 M2.5 X 0.45 4.4 - 5.5 1.5 Max.* (ref.) 2.1 Max. 0.6 - 0.8 1.0 - 1.2 6
PMSOMSM025045008 M2.5 X 0.45 4.4 - 5.5 1.5 Max.* (ref.) 2.1 Max. 0.6 - 0.8 1.0 - 1.2 8
PMSOMSM025045010 M2.5 X 0.45 4.4 - 5.5 1.5 Max.* (ref.) 2.1 Max. 0.6 - 0.8 1.0 - 1.2 10
PMSOMSM025045012 M2.5 X 0.45 4.4 - 5.5 1.5 Max.* (ref.) 2.1 Max. 0.6 - 0.8 1.0 - 1.2 12
PMSOMSM025045016 M2.5 X 0.45 4.4 - 5.5 1.5 Max.* (ref.) 2.1 Max. 0.6 - 0.8 1.0 - 1.2 16
PMSOMSM025045020 M2.5 X 0.45 4.4 - 5.5 1.5 Max.* (ref.) 2.1 Max. 0.6 - 0.8 1.0 - 1.2 20
PMSOMSM025045025 M2.5 X 0.45 4.4 - 5.5 1.5 Max.* (ref.) 2.1 Max. 0.6 - 0.8 1.0 - 1.2 25
PMSOMSM030050005 M3 X 0.50 5.2 - 6.3 1.7 Max.* (ref.) 2.4 Max. 0.8 - 1.0 1.2 - 1.5 5
PMSOMSM030050006 M3 X 0.50 5.2 - 6.3 1.7 Max.* (ref.) 2.4 Max. 0.8 - 1.0 1.2 - 1.5 6
PMSOMSM030050008 M3 X 0.50 5.2 - 6.3 1.7 Max.* (ref.) 2.4 Max. 0.8 - 1.0 1.2 - 1.5 8
PMSOMSM030050010 M3 X 0.50 5.2 - 6.3 1.7 Max.* (ref.) 2.4 Max. 0.8 - 1.0 1.2 - 1.5 10
PMSOMSM030050012 M3 X 0.50 5.2 - 6.3 1.7 Max.* (ref.) 2.4 Max. 0.8 - 1.0 1.2 - 1.5 12
PMSOMSM030050015 M3 X 0.50 5.2 - 6.3 1.7 Max.* (ref.) 2.4 Max. 0.8 - 1.0 1.2 - 1.5 15
PMSOMSM030050016 M3 X 0.50 5.2 - 6.3 1.7 Max.* (ref.) 2.4 Max. 0.8 - 1.0 1.2 - 1.5 16
PMSOMSM030050020 M3 X 0.50 5.2 - 6.3 1.7 Max.* (ref.) 2.4 Max. 0.8 - 1.0 1.2 - 1.5 20
PMSOMSM030050025 M3 X 0.50 5.2 - 6.3 1.7 Max.* (ref.) 2.4 Max. 0.8 - 1.0 1.2 - 1.5 25
PMSOMSM030050030 M3 X 0.50 5.2 - 6.3 1.7 Max.* (ref.) 2.4 Max. 0.8 - 1.0 1.2 - 1.5 30
PMSOMSM030050042 M3 X 0.50 5.2 - 6.3 1.7 Max.* (ref.) 2.4 Max. 0.8 - 1.0 1.2 - 1.5 42
PMSOMSM035060006 M3.5 X 0.60 6.9 - 8.2 2.3 Max.* (ref.) 3.1 Max. 1.0 - 1.2 1.4 - 1.7 6
PMSOMSM035060008 M3.5 X 0.60 6.9 - 8.2 2.3 Max.* (ref.) 3.1 Max. 1.0 - 1.2 1.4 - 1.7 8
PMSOMSM035060010 M3.5 X 0.60 6.9 - 8.2 2.3 Max.* (ref.) 3.1 Max. 1.0 - 1.2 1.4 - 1.7 10
PMSOMSM035060016 M3.5 X 0.60 6.9 - 8.2 2.3 Max.* (ref.) 3.1 Max. 1.0 - 1.2 1.4 - 1.7 16
PMSOMSM035060020 M3.5 X 0.60 6.9 - 8.2 2.3 Max.* (ref.) 3.1 Max. 1.0 - 1.2 1.4 - 1.7 20
PMSOMSM035060025 M3.5 X 0.60 6.9 - 8.2 2.3 Max.* (ref.) 3.1 Max. 1.0 - 1.2 1.4 - 1.7 25
PMSOMSM035060035 M3.5 X 0.60 6.9 - 8.2 2.3 Max.* (ref.) 3.1 Max. 1.0 - 1.2 1.4 - 1.7 35
PMSOMSM040070006 M4 X 0.70 8.0 - 9.4 2.7 Max.* (ref.) 3.7 Max. 1.2 - 1.5 1.6 - 1.9 6
PMSOMSM040070008 M4 X 0.70 8.0 - 9.4 2.7 Max.* (ref.) 3.7 Max. 1.2 - 1.5 1.6 - 1.9 8
PMSOMSM040070010 M4 X 0.70 8.0 - 9.4 2.7 Max.* (ref.) 3.7 Max. 1.2 - 1.5 1.6 - 1.9 10
PMSOMSM040070012 M4 X 0.70 8.0 - 9.4 2.7 Max.* (ref.) 3.7 Max. 1.2 - 1.5 1.6 - 1.9 12
PMSOMSM040070015 M4 X 0.70 8.0 - 9.4 2.7 Max.* (ref.) 3.7 Max. 1.2 - 1.5 1.6 - 1.9 15
PMSOMSM040070016 M4 X 0.70 8.0 - 9.4 2.7 Max.* (ref.) 3.7 Max. 1.2 - 1.5 1.6 - 1.9 16
PMSOMSM040070020 M4 X 0.70 8.0 - 9.4 2.7 Max.* (ref.) 3.7 Max. 1.2 - 1.5 1.6 - 1.9 20
PMSOMSM040070025 M4 X 0.70 8.0 - 9.4 2.7 Max.* (ref.) 3.7 Max. 1.2 - 1.5 1.6 - 1.9 25
PMSOMSM040070030 M4 X 0.70 8.0 - 9.4 2.7 Max.* (ref.) 3.7 Max. 1.2 - 1.5 1.6 - 1.9 30
PMSOMSM040070035 M4 X 0.70 8.0 - 9.4 2.7 Max.* (ref.) 3.7 Max. 1.2 - 1.5 1.6 - 1.9 35
PMSOMSM050080006 M5 X 0.80 8.9 - 10.4 2.7 Max.* (ref.) 3.9 Max. 1.2 - 1.5 2.0 - 2.4 6
PMSOMSM050080008 M5 X 0.80 8.9 - 10.4 2.7 Max.* (ref.) 3.9 Max. 1.2 - 1.5 2.0 - 2.4 8
PMSOMSM050080010 M5 X 0.80 8.9 - 10.4 2.7 Max.* (ref.) 3.9 Max. 1.2 - 1.5 2.0 - 2.4 10
PMSOMSM050080012 M5 X 0.80 8.9 - 10.4 2.7 Max.* (ref.) 3.9 Max. 1.2 - 1.5 2.0 - 2.4 12
PMSOMSM050080015 M5 X 0.80 8.9 - 10.4 2.7 Max.* (ref.) 3.9 Max. 1.2 - 1.5 2.0 - 2.4 15
PMSOMSM050080016 M5 X 0.80 8.9 - 10.4 2.7 Max.* (ref.) 3.9 Max. 1.2 - 1.5 2.0 - 2.4 16
PMSOMSM050080020 M5 X 0.80 8.9 - 10.4 2.7 Max.* (ref.) 3.9 Max. 1.2 - 1.5 2.0 - 2.4 20
PMSOMSM050080025 M5 X 0.80 8.9 - 10.4 2.7 Max.* (ref.) 3.9 Max. 1.2 - 1.5 2.0 - 2.4 25
PMSOMSM050080030 M5 X 0.80 8.9 - 10.4 2.7 Max.* (ref.) 3.9 Max. 1.2 - 1.5 2.0 - 2.4 30
PMSOMSM050080035 M5 X 0.80 8.9 - 10.4 2.7 Max.* (ref.) 3.9 Max. 1.2 - 1.5 2.0 - 2.4 35
PMSOMSM050080040 M5 X 0.80 8.9 - 10.4 2.7 Max.* (ref.) 3.9 Max. 1.2 - 1.5 2.0 - 2.4 40
PMSOMSM060100008 M6 X 1.00 10.9 - 12.6 3.3 Max.* (ref.) 4.7 Max. 1.6 - 1.9 2.4 - 2.8 8
PMSOMSM060100010 M6 X 1.00 10.9 - 12.6 3.3 Max.* (ref.) 4.7 Max. 1.6 - 1.9 2.4 - 2.8 10
PMSOMSM060100012 M6 X 1.00 10.9 - 12.6 3.3 Max.* (ref.) 4.7 Max. 1.6 - 1.9 2.4 - 2.8 12
PMSOMSM060100016 M6 X 1.00 10.9 - 12.6 3.3 Max.* (ref.) 4.7 Max. 1.6 - 1.9 2.4 - 2.8 16
PMSOMSM060100020 M6 X 1.00 10.9 - 12.6 3.3 Max.* (ref.) 4.7 Max. 1.6 - 1.9 2.4 - 2.8 20
PMSOMSM060100025 M6 X 1.00 10.9 - 12.6 3.3 Max.* (ref.) 4.7 Max. 1.6 - 1.9 2.4 - 2.8 25
PMSOMSM060100035 M6 X 1.00 10.9 - 12.6 3.3 Max.* (ref.) 4.7 Max. 1.6 - 1.9 2.4 - 2.8 35
PMSOMSM060100040 M6 X 1.00 10.9 - 12.6 3.3 Max.* (ref.) 4.7 Max. 1.6 - 1.9 2.4 - 2.8 40
PMSOMSM060100045 M6 X 1.00 10.9 - 12.6 3.3 Max.* (ref.) 4.7 Max. 1.6 - 1.9 2.4 - 2.8 45
PMSOMSM060100050 M6 X 1.00 10.9 - 12.6 3.3 Max.* (ref.) 4.7 Max. 1.6 - 1.9 2.4 - 2.8 50
PMSOMSM080125020 M8 X 1.25 15.4 - 17.3 4.6 Max.* (ref.) 6.6 Max. 2.0 - 2.3 3.2 - 3.7 20
PMSOMSM080125030 M8 X 1.25 15.4 - 17.3 4.6 Max.* (ref.) 6.6 Max. 2.0 - 2.3 3.2 - 3.7 30
PMSOMSM080125050 M8 X 1.25 15.4 - 17.3 4.6 Max.* (ref.) 6.6 Max. 2.0 - 2.3 3.2 - 3.7 50
PMSOMSM100150020 M10 X 1.50 17.8 - 20.0 5.0 Max.* (ref.) 7.3 Max. 2.5 - 2.8 3.8 - 4.4 20
PMSOMSM100150025 M10 X 1.50 17.8 - 20.0 5.0 Max.* (ref.) 7.3 Max. 2.5 - 2.8 3.8 - 4.4 25
PMSOMSM100150030 M10 X 1.50 17.8 - 20.0 5.0 Max.* (ref.) 7.3 Max. 2.5 - 2.8 3.8 - 4.4 30
PMSOMSM100150035 M10 X 1.50 17.8 - 20.0 5.0 Max.* (ref.) 7.3 Max. 2.5 - 2.8 3.8 - 4.4 35
PMSOMSM100150060 M10 X 1.50 17.8 - 20.0 5.0 Max.* (ref.) 7.3 Max. 2.5 - 2.8 3.8 - 4.4 60
PMSOMSM035060005 M3.5 X 0.60 6.9 - 8.2 2.3 Max.* (ref.) 3.1 Max.
 1.0 - 1.2 1.4 - 1.7 5

Nominal Screw Length Tolerance on Length
mm
to 3mm incl. 0.2
over 3 to 10mm 0.3
over 10 to 16mm 0.4
over 16 to 50mm 0.5
over 50mm 1.0
All tolerances are plus and minus
